Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13107537SQ Door, Refrigerator (stainless)   (Replaces: 13107537S) Special Order $ 986.66

1 13109402WQ Door, Refrigerator (white)   (Replaces: 13109402W) Special Order $ 1,100.83

1 13109402BQ Door, Refrigerator (black)   (Replaces: 13109402B) Special Order $ 931.31

2 WP12246608 Plug-button (black)   (Replaces: 12246608) In-Stock Immediately $ 8.15

2 WP12246610 Plug-button (plug, Button)   (Replaces: 12246610) In-Stock Immediately $ 8.15

2 WP67001130 Plug-button (white)   (Replaces: 12246607) In-Stock Immediately $ 5.98

3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 82.67

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 88.01

5 67004040 Bucket, Door (medium)   (Replaces: 12801902) Special Order $ 95.99

5 WP67004041 Bucket, Door (small)   (Replaces: 12801901) Special Order $ 89.01

6 WP2255411 Clip, Handle Mount   (Replaces: 2255411) Special Order $ 36.55

7 WP67003639 Closure, Door (black)   (Replaces: 12028505B) Special Order $ 90.32

7 WP67003638 Closure, Door (white)   (Replaces: 12028505W) In-Stock Immediately $ 8.15

8 WPW10436245 Gasket, Door (black)   (Replaces: W10436245) Special Order $ 362.36

8 WPW10443309 Gasket, Door (white)   (Replaces: W10443309) In-Stock Immediately $ 365.24

9 W10252285N Handle, Door (black) Appelez-nous -
9 WPW10252284A Handle, Door (white)   (Replaces: W10252284N) Special Order $ 76.28

9 W10252288A Handle, Door (stainless)   (Replaces: W10252288N) Special Order $ 129.86

10 WP98165 Screw   (Replaces: 12990504) Special Order $ 8.57

11 12968202W Stop, Door (white)   (Replaces: 10447111) Special Order $ 69.29

11 W11708403 Stop, Door (black)   (Replaces: 10447112) In-Stock Immediately $ 14.75

12 WPW10170766 Stainless   (Replaces: W10170766) In-Stock Immediately $ 70.50

13 67001139 Retainer, Door   (Replaces: 12557904) In-Stock Immediately $ 104.79

14 67004978 Bushing, Door (black)   (Replaces: 10961006B) Special Order $ 22.10

14 WP67004977 Bushing, Door (white)   (Replaces: 10961006W) Special Order $ 8.20

15 WPW10288153 Screw   (Replaces: W10288153) In-Stock Immediately $ 9.65


    View Diagram in Separate Window     Print Icon   Print Part List

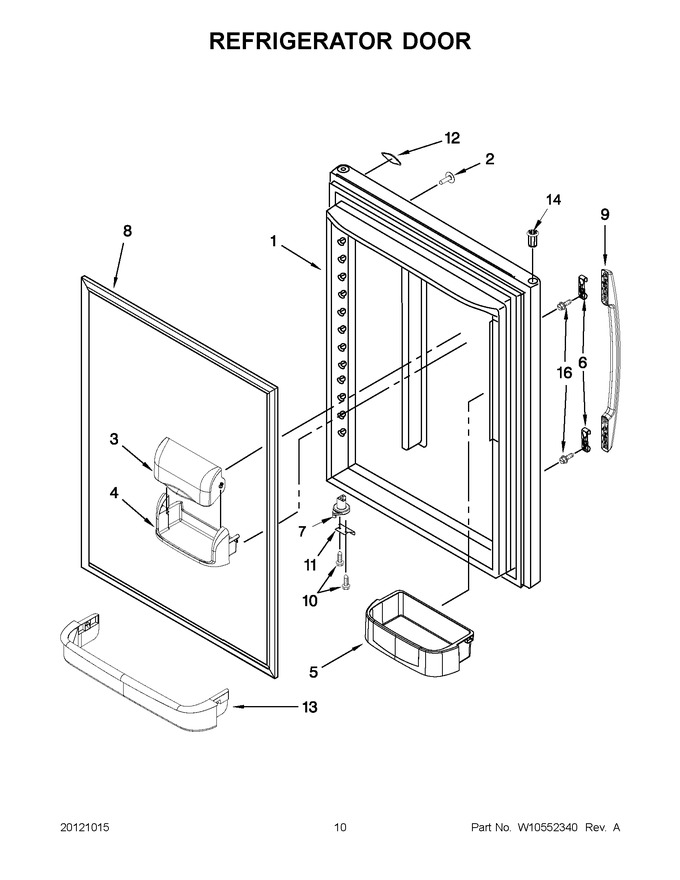

Diagram for MBF1958XES5
