Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10469296 Assembly, Console (white) Appelez-nous -
2 W10468518 Assembly, Iml (white) Special Order $ 496.46

3 W10489172 Screw Special Order $ 11.98

4 W10445519 Control Unit, Central Special Order $ 323.56

5 W10853910 Assembly, Control Knob (silver)   (Replaces: W10519048) Special Order $ 53.94

6 W10486221 Harness, Ui Jumper Appelez-nous -
7 W10208197 Bracket, Console Special Order $ 174.54

8 WP489464 Screw   (Replaces: W10142290) In-Stock Immediately $ 8.38

9 WPW10653575 Channel, Water   (Replaces: W10317570) Special Order $ 90.94

10 W10317566 Clip, Spring Special Order $ 9.16

11 W10485684 Harness, Led Ui Special Order $ 25.92

12 W10422437 Harness, Wiring (upper Main) Appelez-nous -
1A W10469297 Assembly, Console (granite) Special Order $ 251.75

2A W10468520 Assembly, Iml (granite) Special Order $ 456.68

5A W10853910 Assembly, Control Knob (granite)   (Replaces: W10480090) Special Order $ 53.94

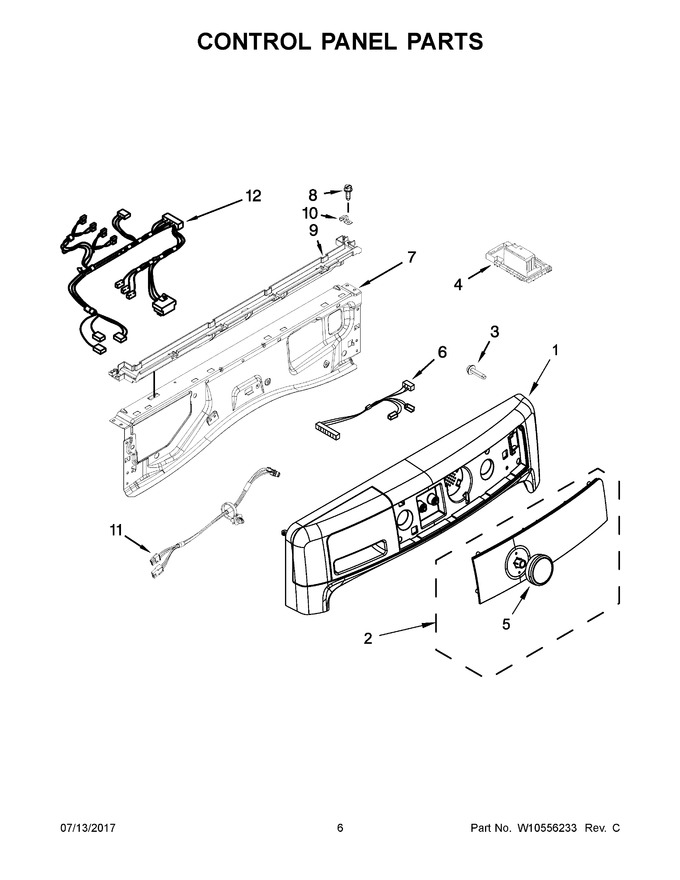

    View Diagram in Separate Window     Print Icon   Print Part List
