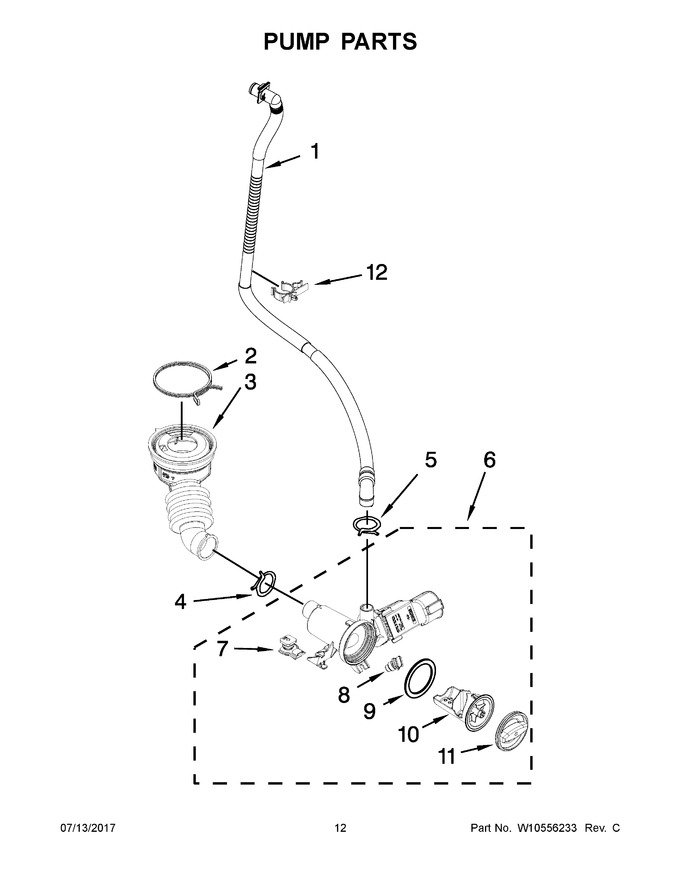

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10611624 | Drain Hose (internal) |
|
$ 100.62 | |||||
| 2 | WP696392 | Clamp, Hose (Replaces: 8181734) |
|
$ 8.12 | |||||
| 3 | WPW10467168 | Hose, Tub To Pump (Replaces: W10241029) |
|
Immediately | $ 38.31 | ||||
| 4 | W10273036 | Clamp, Hose |
|
$ 15.50 | |||||
| 5 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 6 | WPW10515399 | Pump (complete) (Replaces: W10422971) |
|
Immediately | $ 324.16 | ||||
| 7 | W10338326 | Grommet, Damper (rear) |
|
$ 32.97 | |||||
| 8 | WPW10526202 | Grommet, Damper (front) (Replaces: 8182816) |
|
$ 16.23 | |||||
| 9 | 8181736 | Seal, Filter Cap |
|
$ 36.51 | |||||
| 10 | W10241027 | Filter, Pump |
|
$ 57.81 | |||||
| 11 | W10338322 | Cap, Filter |
|
- | |||||
| 12 | W10441646 | Retainer, Drain Hose |
|
$ 18.60 |
