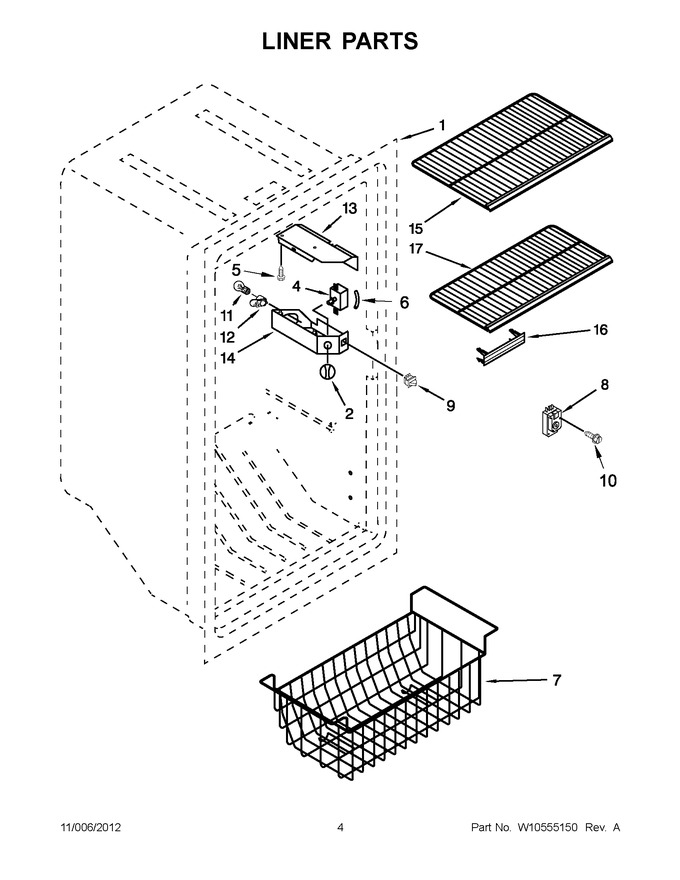

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	3-82390-001		Knob Control				$ 30.10
4	WPW10474749		Thermostat   (Replaces: W10474749)			Immediately	$ 229.44
5	W11233072		Screw   (Replaces: 3-80732-014)			Immediately	$ 14.72
6	W10389334		Tubing, Thermostat Barrier		Appelez-nous	-
7	4-60064-002		Basket, Wire		Appelez-nous	-
8	WP3-81329		Timer, Defrost   (Replaces: 3-81329)			Immediately	$ 199.14
9	W11384469		Switch, Light   (Replaces: 2-32164-001)			Immediately	$ 39.09
10	1-80270-104		Screw		Appelez-nous	-
11	40A15		Bulb, Light   (Replaces: 1-34291-002)			Immediately	$ 1.98
12	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
13	3-82392-001		Shield, Corner Control		Appelez-nous	-
14	4-82389-002		Housing, Corner Control				$ 39.19
15	4-82315-002		Shelf, Upper		Appelez-nous	-
16	WP3-80414-103		Baffle, Air Duct   (Replaces: 3-80414-103)				$ 13.50
17	4-82314-002		Shelf, Lower		Appelez-nous	-
