SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Door Parts


04 - Unit Parts


05 - Parts Not Illustrated

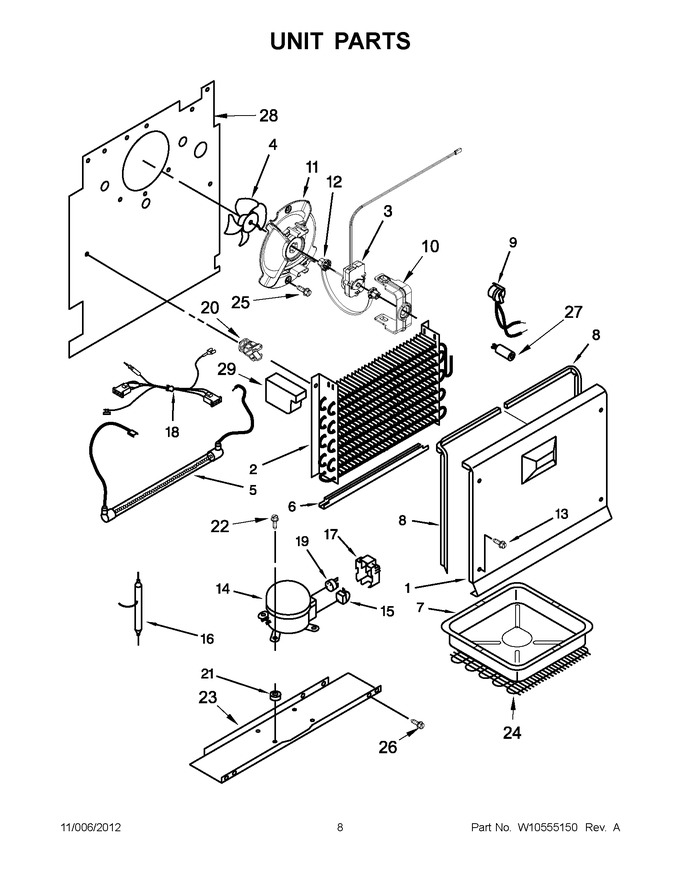

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10452370		Cover, Evaporator				$ 237.73
2	W10455861		Evaporator				$ 257.12
3	W11780227		Fan Motor   (Replaces: W10236142)			Immediately	$ 134.19
4	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 39.07
5	WPW10486820		Assembly, Heater Harness Includes G87bimetal & Defrost Heater   (Replaces: W10486820)				$ 212.42
6	W10508692		Shield, Heater		Appelez-nous	-
7	4-82674-001		Pan, Drain		Appelez-nous	-
8	4390663		Gasket, Cover Evaporator (right Side)   (Replaces: 3-60180-001)				$ 225.86
8	3-60180-002		Gasket, Cover Evaporator (left Side)				$ 26.18
9	WPW10491891		Bi-metal Defrost   (Replaces: W10491891)				$ 89.31
10	13058002		Clip, Evaporator Motor				$ 12.66
11	W10457575		Shroud, Evaporator Motor				$ 26.98
12	W11690160		Grommet, Fan Motor   (Replaces: W10150583)				$ 7.48
13	W10451793		Screw		Appelez-nous	-
14	W10309990		Compressor   (Replaces: 4-32972-142)			Immediately	$ 583.62
15	WPW10466655		Relay   (Replaces: W10466655)				$ 121.60
16	W10843121		Drier   (Replaces: W10459086)			Immediately	$ 51.42
17	WP61002138		Cover   (Replaces: W10462677)				$ 8.29
18	W10507269		Harness, Fan				$ 107.51
19	WP2187145		Overload   (Replaces: 2-34286-038)				$ 138.53
20	10623002		Clip, Evaporator				$ 10.90
21	WP2163786		Grommet, Compressor   (Replaces: 13146462)				$ 7.52
22	8210220		Bolt, Compressor   (Replaces: 2-82082-001)		Appelez-nous	-
23	W10470130		Pan, Compressor Mounting		Appelez-nous	-
24	W10451951		Condenser				$ 270.66
25	60001022		Screw   (Replaces: 3-80732-004)				$ 59.77
26	WP3-24838-048		Screw   (Replaces: 3-24838-048)				$ 7.50
27	1-80275-101		Grommet		Appelez-nous	-
28	W10452115		Plate, Evaporator Mount				$ 236.83
29	W10452121		Block, Foam		Appelez-nous	-
NI	N/P		Refrigerant Charge (6.2 Oz. (r-134a))		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
