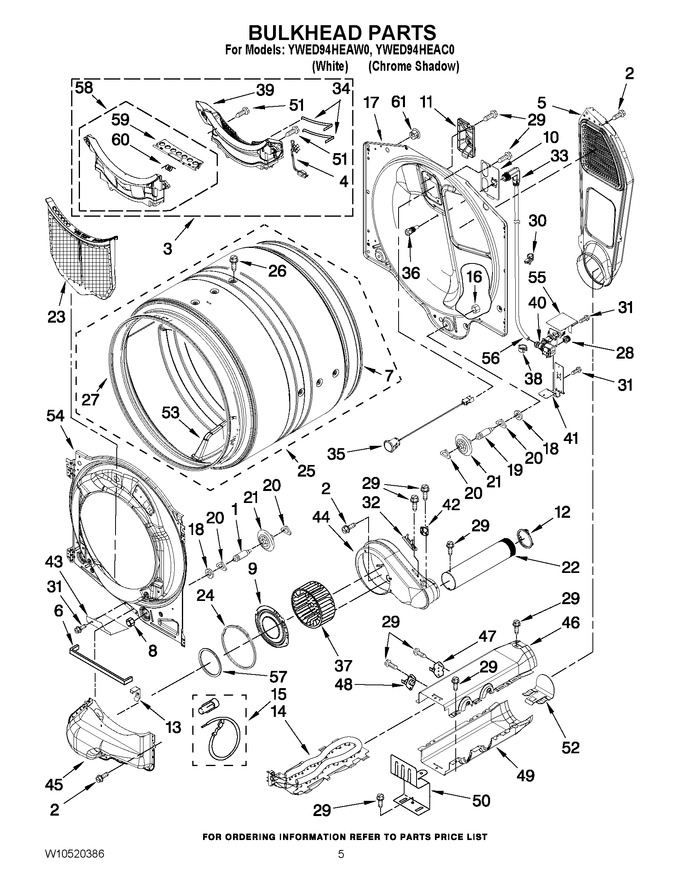

03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: W10359271) |
|
Immediately | $ 62.21 | ||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 3 | W10906551 | Outlet Grill & Housing Assembly (Replaces: W10219012) |
|
Immediately | $ 276.56 | ||||
| 4 | WPW10298258 | Harness, Sensor (Replaces: W10298258) |
|
Immediately | $ 7.84 | ||||
| 5 | WP3387911 | Air Duct Assembly (Replaces: 697354) |
|
$ 327.31 | |||||
| 6 | W11676493 | Seal, Outlet Housing (Replaces: W10211950) |
|
Immediately | $ 29.03 | ||||
| 7 | 280114 | Seal, Drum (Replaces: 697694) |
|
Immediately | $ 70.82 | ||||
| 8 | W11812294 | Nut, 3/8 X 16 (r.h.) (Replaces: 3934666) |
|
$ 12.77 | |||||
| 9 | W10211901 | Collar Assembly (includes, Item. 24 ) |
|
$ 94.08 | |||||
| 10 | W10249422 | Nozzle, Bracket Rear |
|
- | |||||
| 11 | WPW10208422 | Rear Deflector (Replaces: W10208422) |
|
$ 74.00 | |||||
| 12 | WPW10344699 | Collar, Duct (Replaces: W10344699) |
|
$ 85.70 | |||||
| 13 | W10414388 | Clip, Spring |
|
$ 14.56 | |||||
| 14 | WP8544772 | Heater Element (Replaces: 8544772) |
|
$ 339.42 | |||||
| 15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 16 | WPW10080190 | Nut,3/8 X 16(l.h.) (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 17 | W11299301 | Bulkhead, Rear (Replaces: 8520836) |
|
$ 260.14 | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: W10359272) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Tri Ring (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 28.50 | ||||
| 22 | WPW10342188 | Exhaust Pipe (Replaces: W10342188) |
|
Immediately | $ 139.40 | ||||
| 23 | W11758174 | Lint, Screen (Replaces: W10370972) |
|
Immediately | $ 52.12 | ||||
| 24 | WP697770 | Seal, Collar Blower Housing (Replaces: 697770) |
|
Immediately | $ 8.27 | ||||
| 25 | W10541657 | Complete Drum Assembly (Replaces: W10280779) |
|
Immediately | $ 539.54 | ||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 27 | W11193479 | Seal, Drum Front (Replaces: W10273050) |
|
Immediately | $ 22.62 | ||||
| 28 | W10859554 | Coupling, Hose (Replaces: W10044605) |
|
$ 86.06 | |||||
| 29 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 30 | WP3391018 | Cable, Tie (Replaces: 3391018) |
|
$ 33.43 | |||||
| 31 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 32 | WP3392519 | Thermal Fuse (91° C) (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 33 | WPW10347739 | Nozzle & Hose Assembly (include Items, 36 & 56 ) (Replaces: W10347739) |
|
$ 301.77 | |||||
| 34 | WP3387223 | Electrode, Sensor (Replaces: 3387223) |
|
Immediately | $ 6.17 | ||||
| 35 | W10460935 | Drum Light Assembly |
|
$ 77.97 | |||||
| 36 | WPW10277503 | Nozzle & Screen Assembly (Replaces: W10277503) |
|
$ 255.65 | |||||
| 37 | WP697772 | Wheel, Blower (Replaces: W10211915) |
|
Immediately | $ 59.07 | ||||
| 38 | W10044599 | Clip, Push-to-connect |
|
$ 15.00 | |||||
| 39 | W11125442 | Grille, Outlet (Replaces: W10211903) |
|
$ 236.44 | |||||
| 40 | W10815373 | Valve, Water Inlet (includes Item 41) (Replaces: W10346403) |
|
Immediately | $ 125.57 | ||||
| 41 | W10346402 | Bracket, Valve |
|
- | |||||
| 42 | WP8557403 | Inlet Thermister High Limit Stat (Replaces: 8557403) |
|
Immediately | $ 79.75 | ||||
| 43 | W11257251 | Shield, Blower Housing (Replaces: W10128629) |
|
$ 72.06 | |||||
| 44 | WPW10211911 | Housing, Blower (Replaces: W10211911) |
|
Immediately | $ 149.69 | ||||
| 45 | WPW10211896 | Lint Duct Assembly (Replaces: W10211896) |
|
$ 219.70 | |||||
| 46 | WP8544769 | Housing-slot Heater Box (Replaces: 8544769) |
|
$ 173.90 | |||||
| 47 | 279973 | Thermal Cut Off (includes, Item. 48 ) (Replaces: 8318314) |
|
Immediately | $ 75.60 | ||||
| 48 | WP8577274 | Thermostat 295°f (215°c) (hi-limit) (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 49 | 8544770 | Housing-tab Heater Box |
|
$ 75.92 | |||||
| 50 | 8066099 | Bracket, Heater Box |
|
$ 26.81 | |||||
| 51 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 52 | 8544776 | Flange, Heater Box |
|
$ 19.01 | |||||
| 53 | W10280771 | Baffle, Drum |
|
Immediately | $ 115.32 | ||||
| 54 | W10673491 | Bulkhead, Front (include Items, 31 & 43 ) (Replaces: W10211930) |
|
Immediately | $ 362.00 | ||||
| 55 | W10815373 | Cover, Inlet Valve (Replaces: W10184825) |
|
Immediately | $ 125.57 | ||||
| 56 | WPW10347739 | Hose, (not Servicable Included With Item 57) (Replaces: W10348621) |
|
$ 301.77 | |||||
| 57 | W11821372 | Seal, Collar Blower (Replaces: W10211899) |
|
$ 22.39 | |||||
| 58 | W10905013 | Housing & Door Assembly (Replaces: W10219013) |
|
$ 226.36 | |||||
| 59 | W11156832 | Door, Lint Screen (Replaces: W10219016) |
|
Immediately | $ 56.63 | ||||
| 60 | W11242876 | Spring, Lint Screen Door (Replaces: W10219015) |
|
$ 110.26 | |||||
| 61 | 8529007 | Plug, Rear Bulkhead |
|
$ 78.87 |
