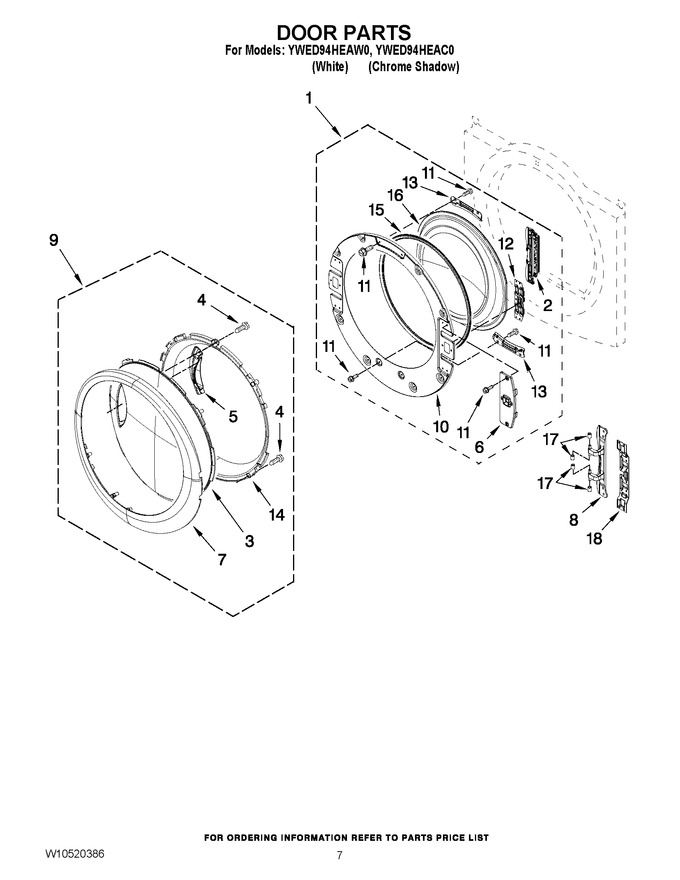

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10208266		Door, Inner Assembly				$ 301.80
2	W11051465		Door Hinge Assembly   (Replaces: W10208414)			Immediately	$ 98.31
3	W10208270		Door, Outer				$ 167.71
4	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 7.19
5	W10208411		Door Handle				$ 85.41
6	W10772469		Cover, Door Catch   (Replaces: W10208413)				$ 81.30
7	W10772471		Door, Trim Ring   (Replaces: W10208271)				$ 299.59
8	WPW10208415		Hinge Base   (Replaces: W10208415)			Immediately	$ 117.42
9	W10208268		Door Assembly (outer)				$ 222.33
10	W10267837		Door Inner				$ 188.98
11	W11661566		Screw   (Replaces: W10288126)				$ 14.03
12	WPW10208254		Door Catch Assembly   (Replaces: W10208254)				$ 81.28
13	W10208252		Bracket, Glass		Appelez-nous	-
14	W10208269		Door Intermediate		Appelez-nous	-
15	W11310035		Seal, Glass   (Replaces: W10329710)			Immediately	$ 86.79
16	W11310036		Door Glass   (Replaces: W10208417)				$ 181.59
17	WPW10208398		Cap, Hinge   (Replaces: W10208398)			Immediately	$ 21.47
18	WPW10208419		Plate, Hinge Retainer   (Replaces: W10208419)				$ 81.85

    View Diagram in Separate Window       Print Part List
