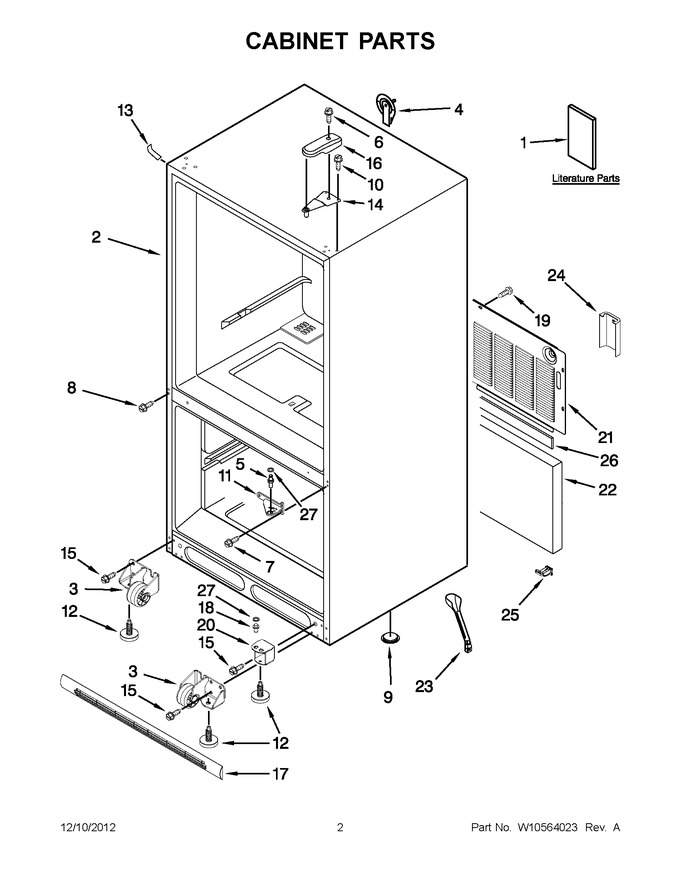

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10366204SP | Manual, Owners |
|
- | |||||
| 1 | W10517966 | Tech Sheet |
|
- | |||||
| 1 | W10235751 | Energy Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 33.62 | ||||
| 3 | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 33.62 | ||||
| 4 | 12726003 | Cover, Water Line |
|
$ 17.27 | |||||
| 5 | WP67006744 | Pin, Center Hinge (Replaces: 10351005) |
|
$ 7.81 | |||||
| 6 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 6.80 | ||||
| 7 | W11573362 | Screw (Replaces: W10339086) |
|
$ 13.25 | |||||
| 8 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 7.59 | ||||
| 9 | A3076901 | Grey |
|
$ 5.70 | |||||
| 10 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 11 | W11689473 | Hinge, Center (white) (Replaces: 12607103WD) |
|
$ 62.81 | |||||
| 12 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 13 | 12587703W | Cover, Corner (white) |
|
$ 20.61 | |||||
| 14 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 42.42 | ||||
| 15 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 7.34 | ||||
| 16 | 67001014 | Cover, Hinge (white) (Replaces: 12477601W) |
|
$ 20.11 | |||||
| 17 | WPW10534166 | Grille Assembly (white) (Replaces: W10236649) |
|
Immediately | $ 85.37 | ||||
| 18 | 67007018 | Pin, Bottom Hinge (Replaces: 10200802) |
|
Immediately | $ 7.76 | ||||
| 19 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 20 | W10490811 | Hinge, Bottom (white) |
|
Immediately | $ 21.19 | ||||
| 21 | W10210978 | Cover, Unit |
|
$ 181.60 | |||||
| 22 | 12820505 | Insulation |
|
$ 71.70 | |||||
| 23 | W10619951 | Tube, Drain (Replaces: W10344401) |
|
Immediately | $ 41.61 | ||||
| 24 | W10208592 | Cover, Valve |
|
- | |||||
| 25 | W10485986 | Guide, Waterline |
|
Immediately | $ 11.66 | ||||
| 26 | B5759655 | Gasket |
|
$ 11.73 | |||||
| 27 | WPM0274057 | Shim (white) (Replaces: M0274057) |
|
Immediately | $ 7.56 |
