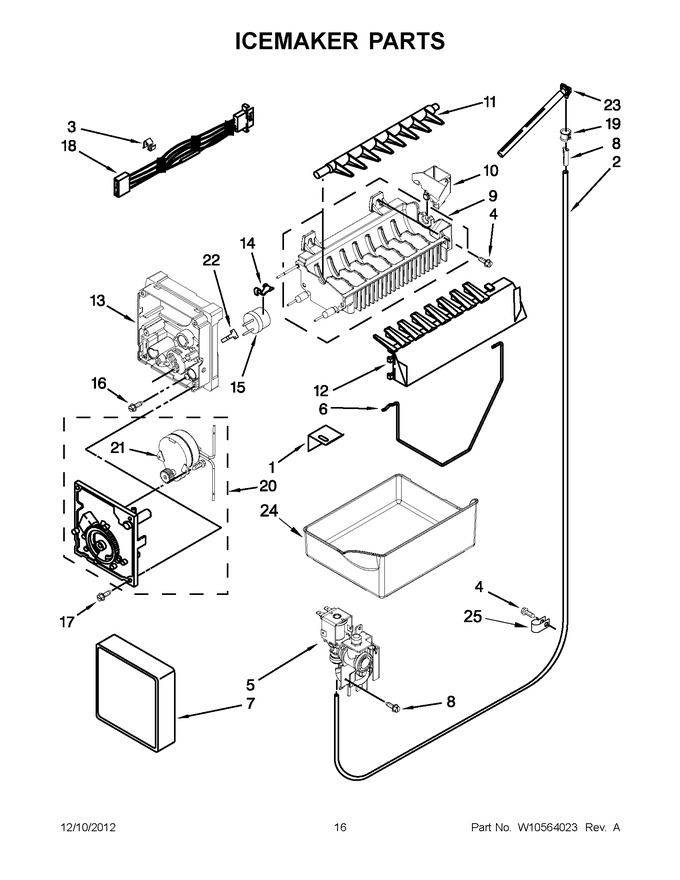

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2256087		Bracket, Ice Maker   (Replaces: 2256086)				$ 87.89
2	WPW10449192		Tube, Plastic   (Replaces: W10449192)				$ 110.60
3	10526702		Clamp, Wire		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
5	WP2315576		Valve, Water Inlet   (Replaces: W10219716)			Immediately	$ 88.31
6	W11559683		Arm-shut Off   (Replaces: W10512602)				$ 64.08
7	WPW10289690		Cover, Front   (Replaces: 12582501)				$ 7.94
8	WPA3223101		Insert, Tube   (Replaces: A3223101)				$ 7.39
9	WPW10300025		Assembly, Mold & Heater   (Replaces: W10300025)			Immediately	$ 181.73
10	W10410073		Cup, Water Fill				$ 75.66
11	W10318914		Ejector, Arm				$ 34.27
12	WPW10122563		Stripper, Ice   (Replaces: W10122563)				$ 89.48
13	WP2195914		Support, Housing   (Replaces: 2194712)				$ 98.82
14	WP628379		Clip, Thermal Fuse   (Replaces: 628379)				$ 9.99
15	WP627985		Thermostat   (Replaces: W10290336)				$ 103.18
16	W10001280		Screw		Appelez-nous	-
17	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
18	WPW10458985		Harness, Ice Maker   (Replaces: W10458985)				$ 100.22
19	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 10.44
20	8201515		Module Assembly (includes Item 24)   (Replaces: W10223929)			Immediately	$ 143.80
21	N/P		Motor (not Available, Order No.20)		Appelez-nous	-
23	W11176463		Elbow, Fill Tube   (Replaces: 10463203)			Immediately	$ 107.87
24	WP67001255		Pan, Ice   (Replaces: 12695001)				$ 191.91
25	W11456069		Clamp-tube   (Replaces: M0108107)			Immediately	$ 20.16
100	W10884390		Icemaker Assembly (complete)   (Replaces: W10469286)			Immediately	$ 134.69
