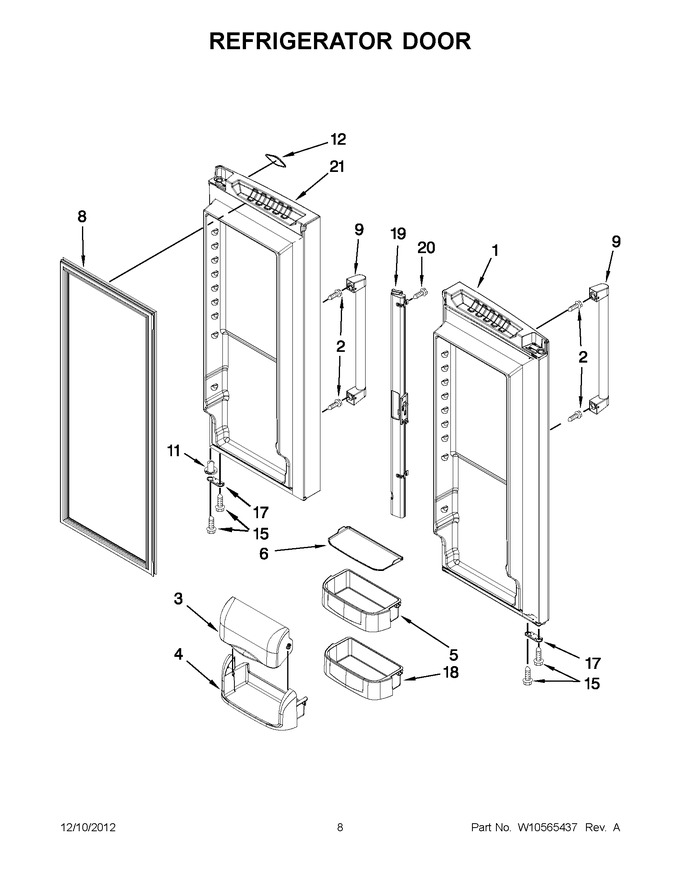

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13094747SQ | Door, Left (stainless) (Replaces: 13094747S) |
|
$ 1,359.60 | |||||
| 2 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10119841 | Bucket, Medium (Replaces: W10119841) |
|
Immediately | $ 90.23 | ||||
| 6 | W11510594 | Gripper, Bucket (gallon) (Replaces: W10450019) |
|
$ 20.01 | |||||
| 6 | W11510593 | Gripper, Bucket (medium) (Replaces: W10450018) |
|
Immediately | $ 17.43 | ||||
| 8 | W10830046 | Gasket, Door (grey) (Replaces: W10443241) |
|
Immediately | $ 266.71 | ||||
| 9 | WPW10319122 | Handle, Door (stainless) (Replaces: W10319122K) |
|
$ 161.49 | |||||
| 11 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 12 | WPW10320959 | Nameplate (zinc) (Replaces: W10320959) |
|
$ 102.43 | |||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 17 | WPW10120097 | Stop, Door (grey) (Replaces: W10120097) |
|
$ 8.80 | |||||
| 18 | WPW10119846 | Bin, Shelf (gallon) (Replaces: W10119846) |
|
Immediately | $ 88.37 | ||||
| 19 | W11177238 | Mullion, Door (grey) (Replaces: 12732508AP) |
|
Immediately | $ 220.83 | ||||
| 20 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 21 | 13094739SQ | Door, Right (stainless) (Replaces: 13094739S) |
|
$ 1,042.15 |
