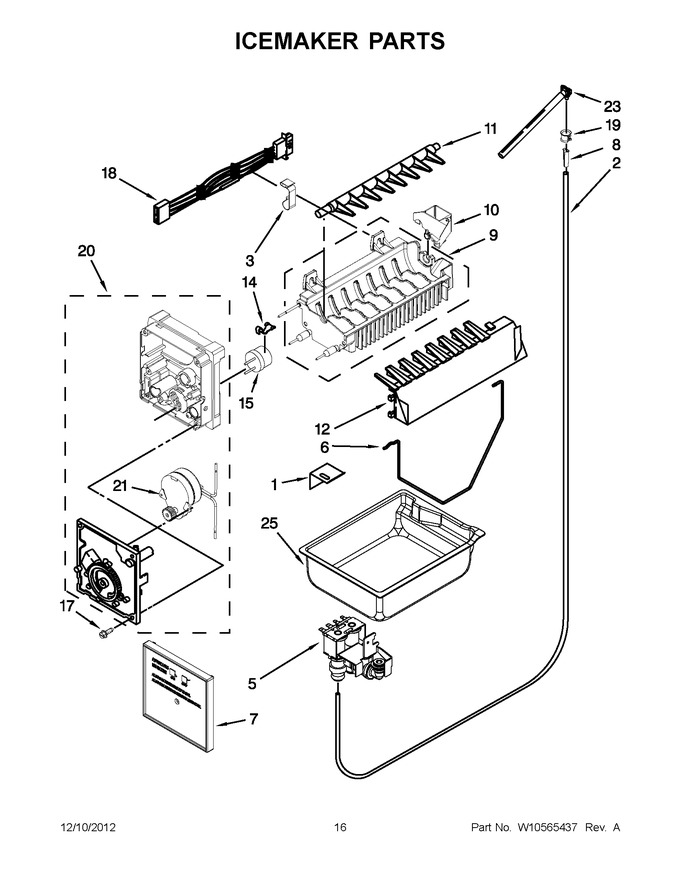

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2256087 | Bracket, Ice Maker (Replaces: 2256086) |
|
$ 87.89 | |||||
| 2 | W11120581 | Tubing, Plastic (Replaces: B5705333) |
|
$ 112.44 | |||||
| 3 | 10526702 | Clamp, Wire |
|
- | |||||
| 5 | WPW10420083 | Valve, Water Inlet (Replaces: W10420083) |
|
Immediately | $ 145.92 | ||||
| 6 | W11559683 | Arm-shut Off (Replaces: W10512602) |
|
$ 64.08 | |||||
| 7 | W10377174 | Cover, Front |
|
$ 73.20 | |||||
| 8 | WPA3223101 | Insert, Tube (Replaces: A3223101) |
|
$ 7.39 | |||||
| 9 | WPW10300025 | Assembly, Mold & Heater (Replaces: W10300025) |
|
Immediately | $ 181.73 | ||||
| 10 | W10410073 | Cup, Water Fill |
|
$ 75.66 | |||||
| 11 | W10318914 | Ejector, Arm |
|
$ 34.27 | |||||
| 12 | WPW10122563 | Stripper, Ice (Replaces: W10122563) |
|
$ 89.48 | |||||
| 14 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 15 | WP627985 | Thermostat (Replaces: W10290336) |
|
$ 103.18 | |||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 18 | WPW10458985 | Harness, Ice Maker (Replaces: W10458985) |
|
$ 100.22 | |||||
| 19 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 10.44 | |||||
| 20 | WPW10281342 | Assembly, Module And Motor (Replaces: W10281342) |
|
$ 252.43 | |||||
| 21 | N/P | Motor (not Available, Order No.20) |
|
- | |||||
| 23 | W11176463 | Elbow, Fill Tube (Replaces: 10463203) |
|
Immediately | $ 107.87 | ||||
| 25 | W10120005 | Pan, Ice |
|
$ 190.46 | |||||
| 100 | W10884390 | Icemaker Assembly (complete) (Replaces: W10377152) |
|
Immediately | $ 134.69 |
