SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts

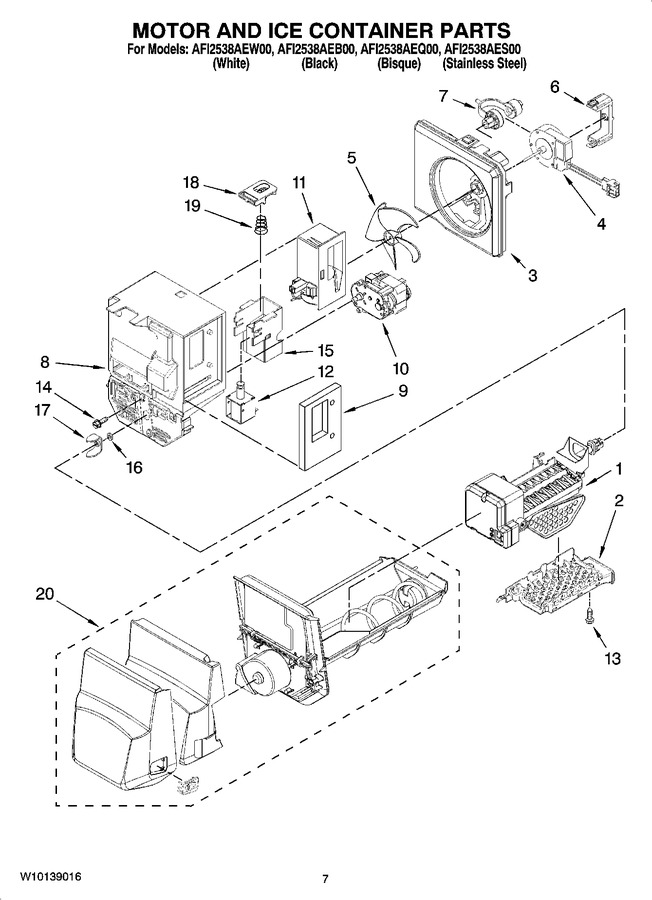

04 - Motor And Ice Container Parts


05 - Freezer Liner Parts


06 - Refrigerator Door Parts


07 - Dispenser Front Parts


08 - Freezer Door Parts


09 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10583817		Icemaker (includes Fill Tube Cup, Wire Harness & Sensor Arm)   (Replaces: 67006847)			Immediately	$ 419.32
2	67006334		Impinger Assembly		Appelez-nous	-
3	67006335		Shroud, Ice Box Fan		Appelez-nous	-
4	67006968		Motor, Fan				$ 153.23
5	WP67006337		Blade, Fan   (Replaces: 67006337)			Immediately	$ 90.45
6	W11712696		Clip, Fan Motor   (Replaces: 67006338)			Immediately	$ 11.66
7	W11676465		Grommet, Fan Motor   (Replaces: 67006339)			Immediately	$ 14.82
8	67006340		Divider, Ice Box		Appelez-nous	-
9	WP67006341		Gasket, Damper   (Replaces: 67006341)				$ 7.96
10	67006342		Motor, Auger				$ 336.64
11	WPW10127427		Damper, Control   (Replaces: 67006343)			Immediately	$ 246.61
12	67006344		Solenoid				$ 190.98
13	67007110		Screw, Impinger		Appelez-nous	-
14	67006425		Screw (3)			Immediately	$ 6.95
15	67006345		Bracket, Solenoid		Appelez-nous	-
16	67006346		Washer				$ 15.21
17	WP63052-2		Yoke, Ice Dispenser   (Replaces: 63052-1)			Immediately	$ 68.91
18	67006347		Yoke, Solenoid				$ 9.95
19	67006348		Spring, Solenoid				$ 12.80
20	WPW10324090		Ice Bin Assembly (includes Auger)   (Replaces: 67006349)				$ 347.67

    View Diagram in Separate Window       Print Part List
