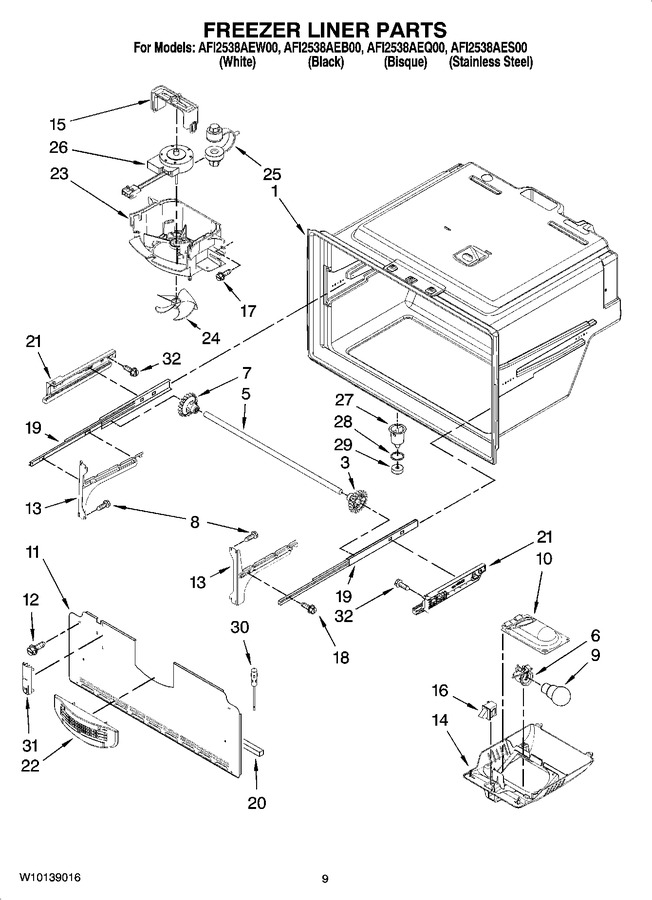

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 12002497 | Gear (left) (Replaces: 67004429) |
|
Immediately | $ 22.51 | ||||
| 5 | W11028221 | Shaft, Rack (Replaces: 67004017) |
|
$ 31.66 | |||||
| 6 | W11447232 | Socket, Light (Replaces: Y12570701) |
|
Immediately | $ 13.21 | ||||
| 7 | 12002497 | Gear, (right) (Replaces: 67004430) |
|
Immediately | $ 22.51 | ||||
| 8 | WP98165 | Screw, Bracket (Replaces: 67006473) |
|
$ 8.00 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: 67003883) |
|
Immediately | $ 11.30 | ||||
| 10 | W11702858 | Housing, Light (Replaces: 67001035) |
|
$ 85.82 | |||||
| 11 | 67006383 | Cover, Evap |
|
- | |||||
| 12 | 67006425 | Screw |
|
Immediately | $ 6.95 | ||||
| 13 | 67004013 | Bracket, Door Slide (right) |
|
- | |||||
| 13 | 67004012 | Bracket, Door Slide (left) |
|
- | |||||
| 14 | 67006423 | Module, Freezer Light |
|
$ 54.86 | |||||
| 15 | W11712696 | Clip, Fan Motor (Replaces: 67006338) |
|
Immediately | $ 11.66 | ||||
| 16 | W11445850 | Switch, Rocker (Replaces: 67006422) |
|
Immediately | $ 50.11 | ||||
| 17 | WP98165 | Screw, Fan Shroud (Replaces: 67006287) |
|
$ 8.00 | |||||
| 18 | WP3400805 | Screw, Slide To Basket (Replaces: 67006769) |
|
$ 7.19 | |||||
| 19 | 67006365 | Slide, Drawer (2) |
|
$ 172.69 | |||||
| 20 | W11451451 | Gasket, Foam (Replaces: 67003731) |
|
$ 12.41 | |||||
| 21 | 67006363 | Adapter (left) |
|
- | |||||
| 21 | 67006364 | Adapter (right) |
|
- | |||||
| 22 | W11176847 | Grille, Air (Replaces: 67006382) |
|
$ 118.25 | |||||
| 23 | W11700329 | Shroud, Evap Fan (Replaces: 67006424) |
|
Immediately | $ 58.29 | ||||
| 24 | WP67006337 | Blade, Fan (evaporator) (Replaces: 67006337) |
|
Immediately | $ 90.45 | ||||
| 25 | W11676465 | Grommet, Fan Motor (2) (Replaces: 67006339) |
|
Immediately | $ 14.82 | ||||
| 26 | 67006968 | Motor, Evaporator Fan |
|
$ 153.23 | |||||
| 27 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 49.05 | ||||
| 28 | WPM0500703 | Seal, O Ring (Replaces: M0500703) |
|
$ 10.92 | |||||
| 29 | WPB8381501 | Gasket, Drain Tube (Replaces: B8381501) |
|
$ 7.41 | |||||
| 30 | 12002355 | Thermistor Kit (Replaces: 12002356) |
|
Immediately | $ 47.36 | ||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 67003924) |
|
$ 7.82 | |||||
| 32 | WP489474 | Screw, Adapter (Replaces: 67006406) |
|
Immediately | $ 7.97 |
