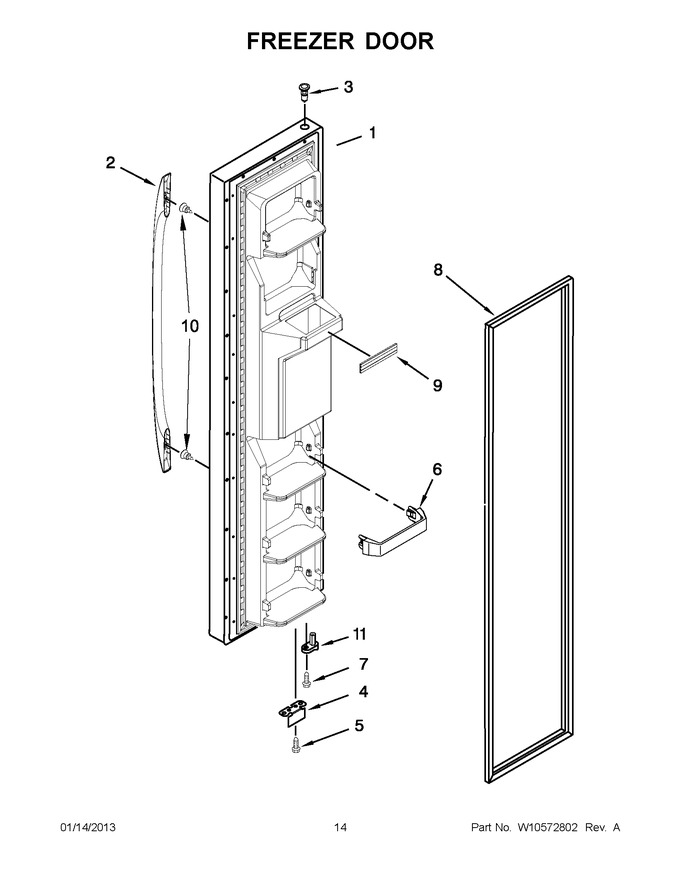

07 - Freezer Door


08 - Dispenser Parts


09 - Air Flow Parts


10 - Control Box Parts


11 - Unit Parts


12 - Ice Maker


13 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10408341		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10408342		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10408343		Freezer Door (includes Item 8 And Dispenser Front Parts) (monochromatic Stainless)		Appelez-nous	-
2	WPW10439229		Handle (black)   (Replaces: W10439229)				$ 179.46
2	WPW10439132		Handle (grey)   (Replaces: W10439132)				$ 289.38
2	WPW10439228		Handle (white)   (Replaces: W10439228)				$ 249.66
3	WP2182181		Thimble   (Replaces: 2182181)				$ 8.15
4	2306940		Bracket, Door Stop (silver)				$ 101.93
5	WP489483		Screw   (Replaces: 489420)				$ 11.41
6	WP2309717		Trim, Door   (Replaces: 2309717)				$ 58.64
7	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2309654)				$ 325.91
8	2159072		Door Gasket, Magnetic (beige)   (Replaces: 2309604)				$ 323.60
8	W10136733		Door Gasket, Magnetic (grey)   (Replaces: 2327162)				$ 358.98
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307492)			Immediately	$ 24.27
10	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
11	WP2223752		Door Closer, Upper Cam (black)   (Replaces: 2223752)				$ 21.16
