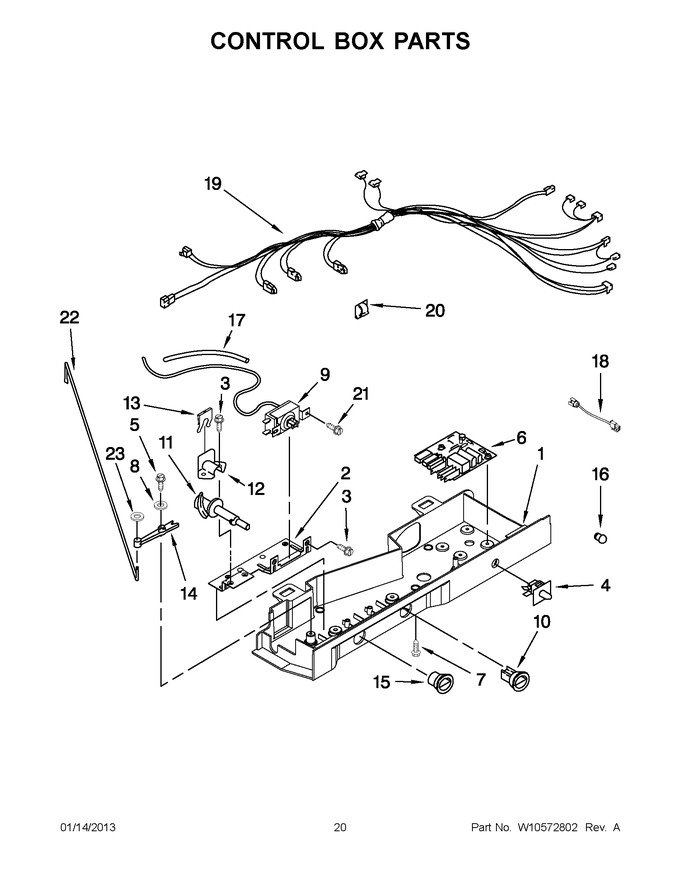

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10553058 | Control Box (Replaces: W10402260) |
|
- | |||||
| 2 | 2311611 | Mounting Bracket |
|
- | |||||
| 3 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 4 | WP2149705 | Switch, Light (Replaces: 2219875) |
|
Immediately | $ 40.40 | ||||
| 5 | 627068 | Screw |
|
$ 12.73 | |||||
| 6 | WPW10366605 | Adaptive Defrost Control (Replaces: W10366605) |
|
Immediately | $ 276.28 | ||||
| 7 | 489392 | Screw (Replaces: 489398) |
|
$ 14.02 | |||||
| 8 | 489203 | Spring Washer |
|
- | |||||
| 9 | WPW10583801 | Thermostat Assembly (Replaces: W10499478) |
|
$ 179.75 | |||||
| 10 | W10723843 | Knob, Thermostat (Replaces: 2311614) |
|
$ 27.92 | |||||
| 11 | WP2182195 | Cam Assembly Harness (Replaces: 2182195) |
|
$ 5.13 | |||||
| 12 | 1110560 | Bearing Body |
|
$ 11.30 | |||||
| 13 | WP2196062 | Damper Control (Replaces: 2196062) |
|
$ 11.25 | |||||
| 14 | 1110559 | Pivot Arm |
|
$ 8.35 | |||||
| 15 | 2311615 | Knob, Control |
|
$ 52.26 | |||||
| 16 | 2200096 | Lens, Light |
|
$ 64.10 | |||||
| 17 | WP2196003 | Tube-barrier, Thermostat (Replaces: 2196001) |
|
$ 8.35 | |||||
| 18 | W10853646 | Led Light Assembly (Replaces: 2213462) |
|
$ 130.80 | |||||
| 19 | W10417924 | Control Box Harness |
|
$ 215.15 | |||||
| 20 | WP1115374 | Clip, Wire (Replaces: 1115374) |
|
$ 8.14 | |||||
| 21 | WP965173 | Screw (Replaces: 487869) |
|
Immediately | $ 11.87 | ||||
| 22 | 2311631 | Connecting Rod |
|
- | |||||
| 23 | 489285 | Fastener, Push-on |
|
- |
