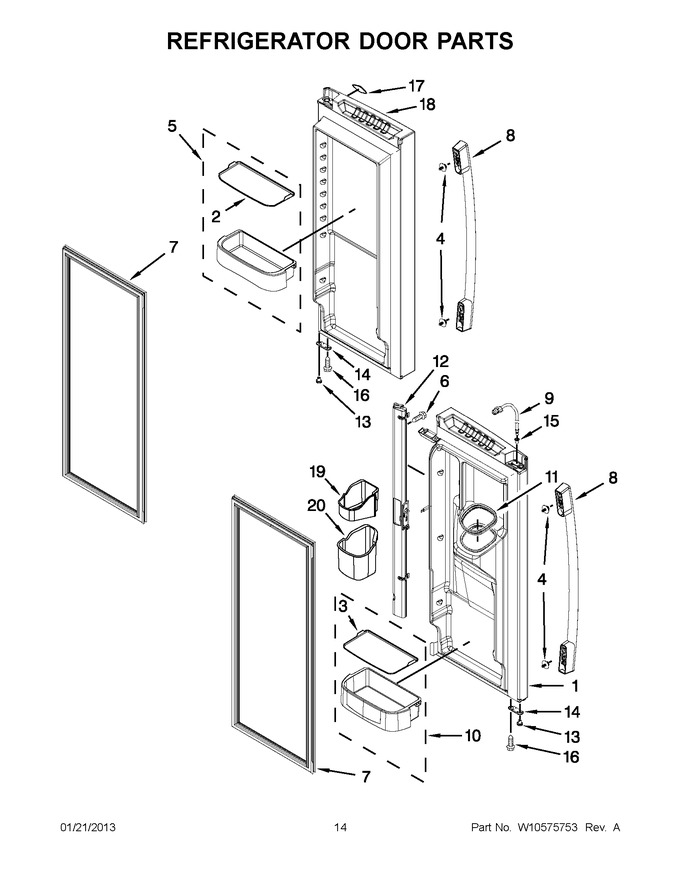

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107878S | Door, Left (stainless) |
|
- | |||||
| 2 | W10450032 | Gripper, Medium |
|
$ 95.32 | |||||
| 3 | W10450033 | Gripper, Gallon |
|
$ 78.55 | |||||
| 4 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 8.69 | ||||
| 5 | WPW10451500 | Bucket, Medium (Replaces: W10451500) |
|
$ 96.90 | |||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 7 | W10830055 | Gasket, Door (grey) (Replaces: W10443238) |
|
Immediately | $ 255.29 | ||||
| 8 | W11351147 | Handle, Door (stainless) (Replaces: W10223019K) |
|
$ 178.40 | |||||
| 9 | W10275942 | Tube, Water |
|
Immediately | $ 108.24 | ||||
| 10 | WPW10451501 | Bucket, Gallon (Replaces: W10451501) |
|
Immediately | $ 98.50 | ||||
| 11 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 29.48 | ||||
| 12 | WP12722813AP | Mullion, Door (grey) (Replaces: 12732503AP) |
|
$ 306.80 | |||||
| 13 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 55.31 | ||||
| 14 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 13.91 | |||||
| 15 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 16 | WP98165 | Screw, Bracket (Replaces: 67006473) |
|
$ 7.71 | |||||
| 17 | WPW10393265 | Nameplate (grey) (Replaces: W10393265) |
|
Immediately | $ 70.71 | ||||
| 18 | 13107853SQ | Door, Right (stainless) (Replaces: 13107853S) |
|
$ 992.60 | |||||
| 19 | WP12977402 | Bucket, Upper (Replaces: 12977402) |
|
$ 71.64 | |||||
| 20 | WP12977502 | Bucket, Lower (Replaces: 12977502) |
|
$ 76.10 |
