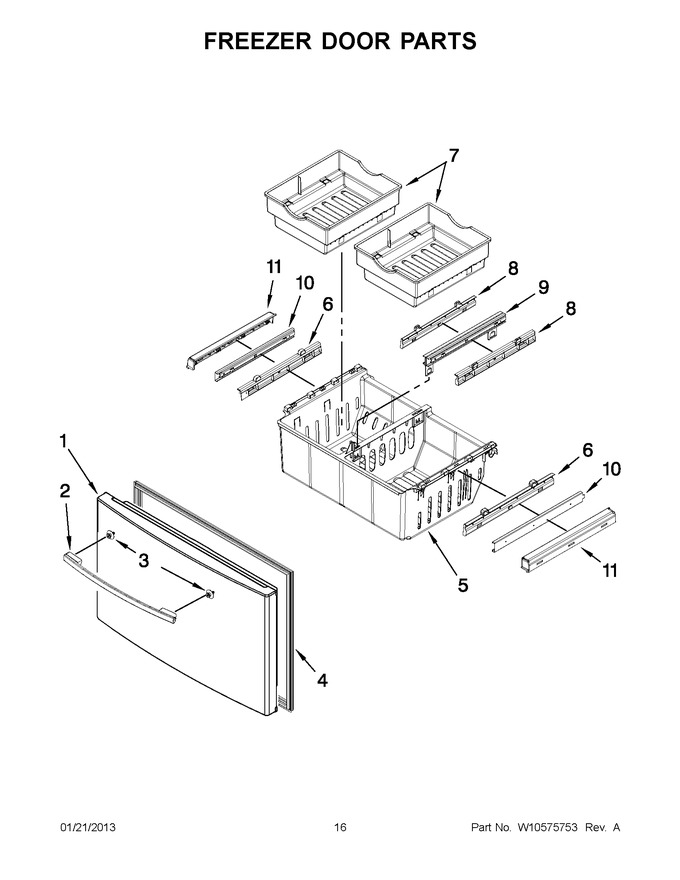

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12977863SQ | Freezer Door (stainless) (Replaces: 12977863S) |
|
$ 918.49 | |||||
| 2 | W10223025K | Handle, Door (stainless) |
|
$ 85.40 | |||||
| 3 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 8.69 | ||||
| 4 | WPW10714545 | Gasket, Door (grey) (Replaces: W10443322) |
|
$ 291.24 | |||||
| 5 | 13002801SP | Bin, Lower |
|
- | |||||
| 6 | W10187469 | Adapter, Outer Bin (Replaces: 13002603SP) |
|
$ 83.05 | |||||
| 7 | W10184227 | Bin, Upper (Replaces: 13002402) |
|
Immediately | $ 109.91 | ||||
| 8 | W10184223 | Adapter, Center Bin (Replaces: 13002604SP) |
|
$ 87.43 | |||||
| 9 | W10235358 | Bracket/glide Assembly |
|
$ 286.28 | |||||
| 10 | WPW10235368 | Glide, Upper (Replaces: W10235368) |
|
$ 302.24 | |||||
| 11 | W10826790 | Retainer, Glide (left Hand) (Replaces: 13002701SP) |
|
$ 56.23 | |||||
| 11 | W10826791 | Retainer, Glide (right Hand) (Replaces: 13002702SP) |
|
$ 56.23 |
