SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Freezer Liner Parts

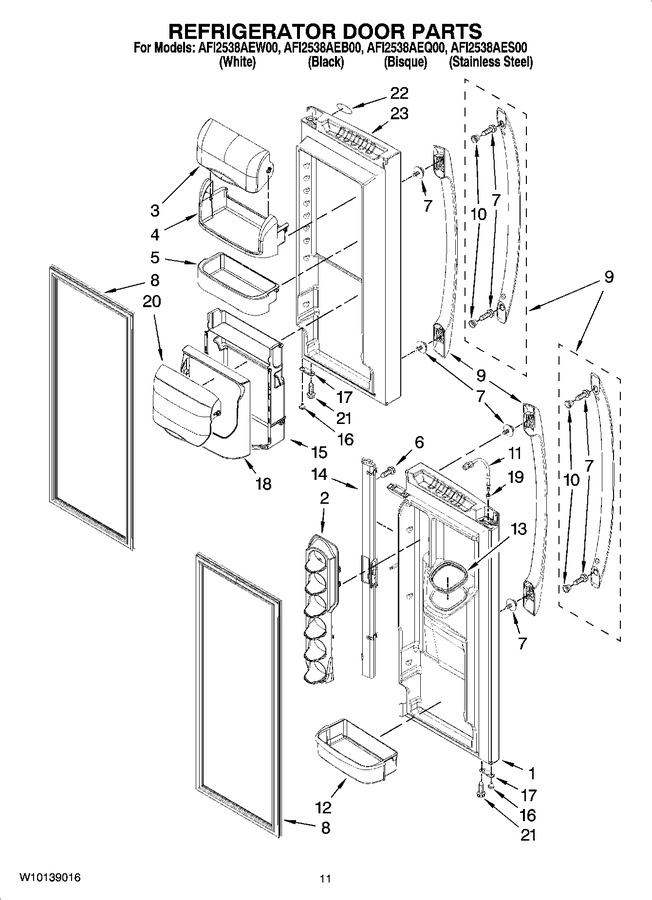

06 - Refrigerator Door Parts


07 - Dispenser Front Parts


08 - Freezer Door Parts


09 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006142		Door, Left (stainless Steel)		Appelez-nous	-
1	67007078		Door, Left (black)		Appelez-nous	-
1	67007101		Door, Left (bisque)		Appelez-nous	-
1	67007124		Door, Left (white)		Appelez-nous	-
2	67006311		Dispenser, Can				$ 36.65
3	WP67003637		Door, Dairy   (Replaces: 67003637)			Immediately	$ 78.73
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 83.82
5	WP67006313		Bin, Shelf (medium)   (Replaces: 67006313)			Immediately	$ 80.59
6	59002047		Screw		Appelez-nous	-
7	WP3387230		Screw, Handle (stainless Model)   (Replaces: 67002935)			Immediately	$ 8.54
7	WP12992902		Screw, Handle (white, Black And Bisque Models)   (Replaces: 67006282)				$ 11.07
8	W11396037		Gasket, Door (white)   (Replaces: 67006302)				$ 297.77
8	W11378944		Gasket, Door (black)   (Replaces: 67006301)			Immediately	$ 187.59
9	67006719		Door Handle (left Door) (stainless)		Appelez-nous	-
9	WPW10119668		Door Handle (left Door) (black)   (Replaces: 67006462)				$ 189.04
9	67006849		Door Handle (left Door) (white)		Appelez-nous	-
9	67006459		Door Handle (right Door) (bisque)		Appelez-nous	-
9	67006461		Door Handle (right Door) (black)		Appelez-nous	-
9	67006456		Door Handle (right Door) (white)		Appelez-nous	-
9	67006460		Door Handle (left Door) (bisque)		Appelez-nous	-
10	WP67006113		Mount, Handle   (Replaces: 67006113)			Immediately	$ 11.96
11	12962106		Waterline, Door   (Replaces: 67006300)				$ 126.75
12	67006404		Bin, Shelf (large)		Appelez-nous	-
13	12665101		Seal, Ice Chute				$ 5.84
14	WP12722813W		Mullion, Door (white)   (Replaces: 67006307)				$ 325.02
14	WPW10151713		Mullion, Door (black)   (Replaces: 67006401)				$ 325.79
14	WP12722813W		Mullion, Door (bisque)   (Replaces: 67006306)				$ 325.02
15	W11266639		Frame, Chiller (rear)   (Replaces: 67006315)				$ 256.79
16	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 86.02
16	WP67003638		Closure, Door (white)   (Replaces: 67003638)			Immediately	$ 7.76
17	W11708403		Stop, Door (black)   (Replaces: 67007011)			Immediately	$ 14.05
17	67006278		Stop, Door (white)		Appelez-nous	-
17	67006304		Stop, Door (bisque)		Appelez-nous	-
18	W11266639		Frame, Chiller (front)   (Replaces: 67006314)				$ 256.79
19	12996601		Bushing, Door (left Door)   (Replaces: 67005954)				$ 10.05
20	WP67006312		Door, Chiller   (Replaces: 67006312)			Immediately	$ 82.18
21	WP98165		Screw   (Replaces: 67006287)				$ 8.00
22	Y12528501		Nameplate   (Replaces: 12528501)			Immediately	$ 59.75
23	67007125		Door, Right (white)		Appelez-nous	-
23	67007077		Door, Right (black)		Appelez-nous	-
23	12978001QQ		Door, Right (bisque)   (Replaces: 67007100)		Appelez-nous	-
23	67006143		Door, Right (stainless Steel)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
