SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Freezer Liner Parts


06 - Refrigerator Door Parts

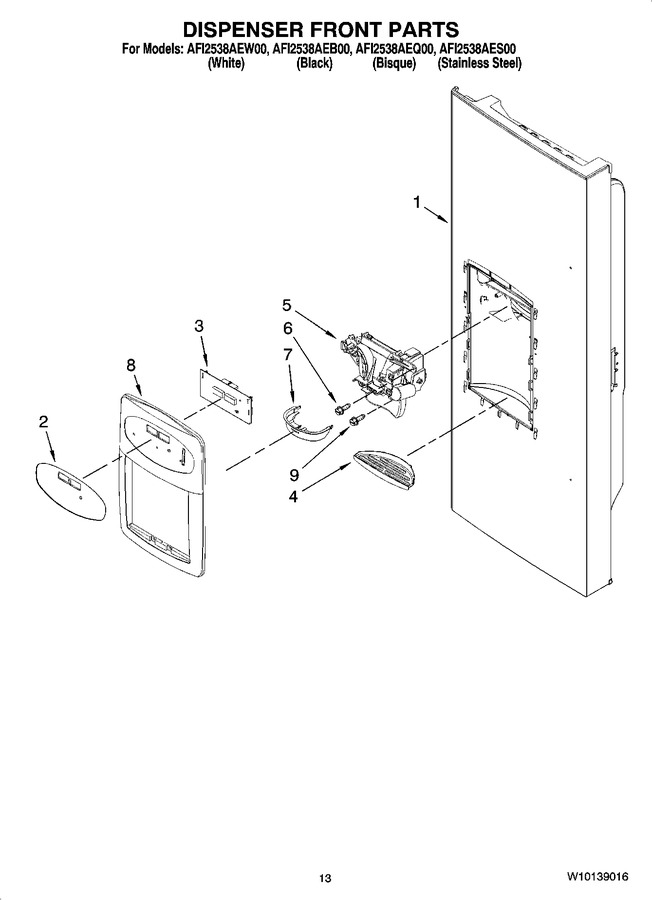

07 - Dispenser Front Parts


08 - Freezer Door Parts


09 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	67006957		Dispenser Keyboard (white)		Appelez-nous	-
2	67006955		Dispenser Keyboard (black)		Appelez-nous	-
2	67006956		Dispenser Keyboard (bisque)		Appelez-nous	-
3	67006294		Board, L.v.				$ 257.17
4	67006394		Sump, Dispenser (white)		Appelez-nous	-
4	WP12999301B		Sump, Dispenser (black)   (Replaces: 67006399)			Immediately	$ 16.97
4	67006440		Sump, Dispenser (bisque)		Appelez-nous	-
5	67006298		Chute, Ext/yoke (includes Switch) (white)		Appelez-nous	-
5	WP13005701B		Chute, Ext/yoke (includes Switch) (black)   (Replaces: Y67006296)				$ 230.24
5	67006297		Chute, Ext/yoke (includes Switch) (bisque)		Appelez-nous	-
6	WP489349		Screw (3)   (Replaces: 67006303)			Immediately	$ 7.88
7	67006295		Ring, Target				$ 52.92
8	67006396		Facade, Dispenser (white)		Appelez-nous	-
8	67006395		Facade, Dispenser (black)		Appelez-nous	-
8	67006289		Facade, Dispenser (bisque)		Appelez-nous	-
9	WP98165		Screw   (Replaces: 67006473)				$ 8.00

    View Diagram in Separate Window       Print Part List
