SELECT A DIAGRAM

1 - Control Panel


2 - Cooktop


3 - Upper Oven


4 - Lower Oven


5 - Upper Door


6 - Lower Door


7 - Door Lock


8 - Convection Fan

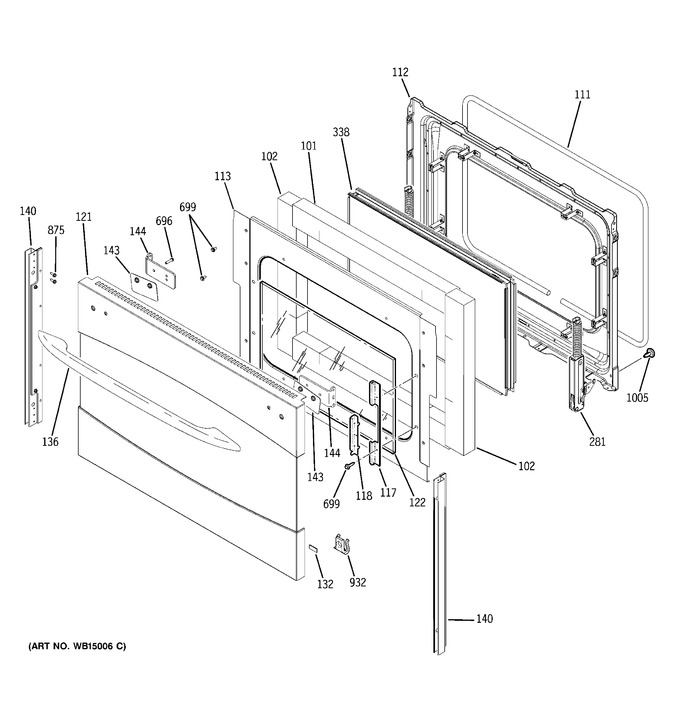

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WB35T10072		Insulation Ovn Dr Top		Appelez-nous	-
102	WB35K10025		Ov Dr Side Insulation Lw		Appelez-nous	-
111	WB04T10076		Gasket Ovn Dr		Appelez-nous	-
112	WB55T10187		Liner Oven Dr Asm		Appelez-nous	-
113	WB02T10371		Retainer Insln Ovn Dr		Appelez-nous	-
117	WB56T10320		Retainer Glass Ovn Dr		Appelez-nous	-
118	WB56T10321		Retainer Glass Ovn Dr		Appelez-nous	-
121	WG02L02265		Panel Asm Bonded   (Replaces: WB56T10295)				$ 1,530.05
122	WG02L00696		Glass Ovn Dr Inr   (Replaces: WB57T10233)			Immediately	$ 200.06
132	WB01T10026		Door Pad		Appelez-nous	-
136	WB15T10190		Handle 30 Asm		Appelez-nous	-
140	WB56T10310		Frame Door Side		Appelez-nous	-
143	WB02T10351		Spacer Bracket Handle		Appelez-nous	-
144	WB02T10349		Bracket Handle		Appelez-nous	-
281	WB10T10127		Hinge Door Rt		Appelez-nous	-
281	WB10T10126		Hinge Door Lt		Appelez-nous	-
338	WG02A01873		Pack Window Asm Lwr   (Replaces: WB56T10105)			Immediately	$ 145.45
696	WB1K5210		Screw		Appelez-nous	-
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
932	WG02L02436		Clip Spacer Door   (Replaces: WB02T10497)				$ 9.53
1005	WS01A01018		Scr 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.97

    View Diagram in Separate Window       Print Part List
