View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Control Panel
2 - Cooktop
3 - Upper Oven
4 - Lower Oven
5 - Upper Door
6 - Lower Door
7 - Door Lock

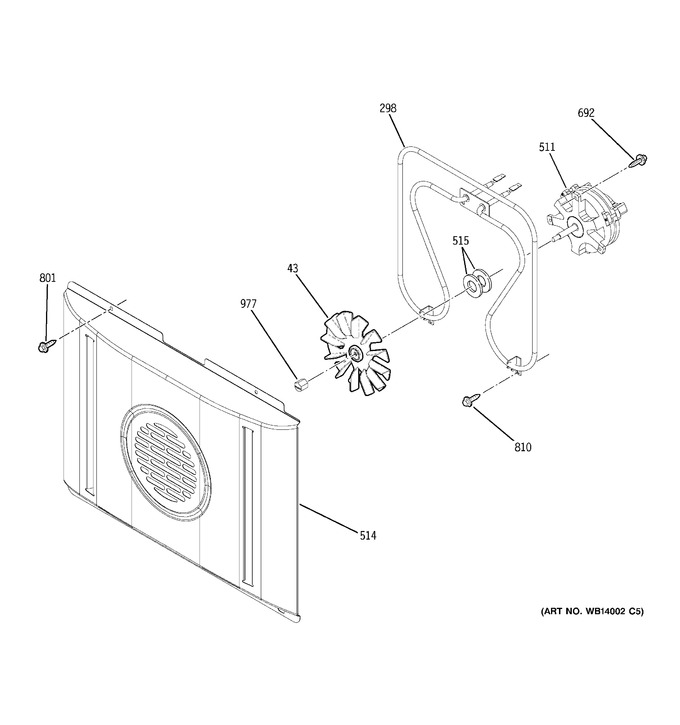

8 - Convection Fan
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 43 | WG02F00731 | Hub Blade Asm (Replaces: WB02T10289) |
|
Immediately | $ 36.53 | ||||
| 298 | WG02F16499 | Element Convx Asm (Replaces: WB44T10086) |
|
$ 58.52 | |||||
| 511 | WG02F01134 | Motor Psc Conv (Replaces: WB26T10043) |
|
$ 169.32 | |||||
| 514 | WB26T10061 | Cover Fan Conv |
|
- | |||||
| 515 | WB02T10514 | Gasket Conv Fan |
|
- | |||||
| 692 | WZ04X0416 | Scr 8-18 Ab Hxw 3/4 |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 810 | WH2X941 | Scr 8-15 A Hxw 7/8 S |
|
- | |||||
| 977 | WS01A01105 | Nut (Replaces: WB02T10017) |
|
Immediately | $ 9.50 | ||||
| WG02L02436 | Clip Spacer Door |
|
$ 9.53 | ||||||
| WG02L02402 | Trim Cntl Asm |
|
$ 202.12 | ||||||
| WG02L02265 | Panel Asm Bonded |
|
$ 1,530.05 | ||||||
| WG02F06070 | Element Bake Hidden |
|
$ 118.07 | ||||||
| WG02F06062 | Board Daughter Relay 6 |
|
$ 88.50 | ||||||
| WG02F05912 | ļ¾#cran D''affichage |
|
$ 11.39 | ||||||
| WG02F05778 | Switch Infinite Control |
|
Immediately | $ 208.13 | |||||
| WG02F05620 | Light Indicator Asm Rt |
|
$ 32.55 | ||||||
| WG02F05250 | Control Board T012 Ele |
|
$ 388.99 | ||||||
| WS01F02056 | Module Indicator Light |
|
$ 57.27 | ||||||
| WG02F04398 | Maintop & Glass Asm |
|
$ 758.15 | ||||||
| WS01F01181 | Element Radiant Bridge (Replaces: WG02F04331) |
|
Immediately | $ 181.36 | |||||
| WG02F04329 | Element Radiant 6" |
|
Immediately | $ 107.19 | |||||
| WG02F04021 | Control Surface Element |
|
Immediately | $ 155.16 | |||||
| WG02F04017 | Inf Switch Control (wm) |
|
$ 64.87 | ||||||
| WS01F01171 | Element Radiant 6" Warmer (Replaces: WG02F02057) |
|
Immediately | $ 60.26 | |||||
| WG02F02055 | ā#lā#ment |
|
Immediately | $ 210.86 | |||||
| WG02F01436 | Ens Capteur |
|
Immediately | $ 70.69 | |||||
| WG02F01227 | Oven Lamp & Holder Asm |
|
$ 63.60 | ||||||
| WS01F02431 | Capteur (Replaces: WG02F04474) |
|
Immediately | $ 30.20 | |||||
| WS01F01598 | Switch Control Infinite |
|
Immediately | $ 73.85 | |||||
| WG04A00781 | Screw 8-18 Ab Hxw 3/8 |
|
Immediately | $ 3.97 | |||||
| WG03F00005 | Bulb 40w S/clean (sp10) |
|
$ 2.22 | ||||||
| WG02L04638 | Liner Oven Dr Asm |
|
$ 136.61 | ||||||
| WG02L04305 | Gasket Ovn Dr |
|
$ 68.37 | ||||||
| WG02L02979 | Window Pack Asm Upr |
|
$ 113.54 | ||||||
| WG02L02590 | Trim Vent Door Asm |
|
$ 500.01 | ||||||
| WG02L02536 | Door Panel Asm |
|
$ 210.76 |
