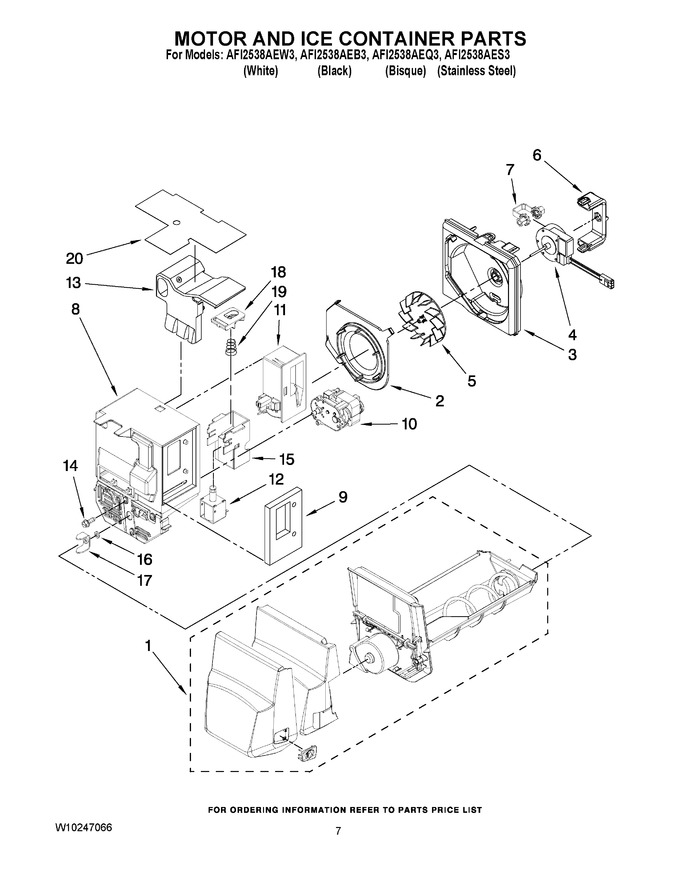

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10324090 | Ice Bin Assembly (includes Auger) (Replaces: 67006349) |
|
$ 347.67 | |||||
| 2 | W10121282 | Inlet, Blower |
|
$ 16.80 | |||||
| 3 | W10121281 | Scroll, Blower |
|
$ 78.25 | |||||
| 4 | WPW10162697 | Motor, Fan (Replaces: W10162697) |
|
$ 338.71 | |||||
| 5 | WPW10123444K | Wheel, Blower (Replaces: W10123444) |
|
$ 88.10 | |||||
| 6 | W11712696 | Clip, Fan Motor (Replaces: 67006338) |
|
Immediately | $ 11.66 | ||||
| 7 | W11676465 | Grommet, Fan Motor (Replaces: 67006339) |
|
Immediately | $ 14.82 | ||||
| 8 | W10187860 | Divider, Ice Box |
|
- | |||||
| 9 | WP67006341 | Gasket, Damper (Replaces: 67006341) |
|
$ 7.96 | |||||
| 10 | 67006342 | Motor, Auger |
|
$ 336.64 | |||||
| 11 | WPW10127427 | Damper, Control (Replaces: W10127427) |
|
Immediately | $ 246.61 | ||||
| 12 | 67006344 | Solenoid |
|
$ 190.98 | |||||
| 13 | W11676504 | Liner, Divider (Replaces: W10118612) |
|
$ 24.23 | |||||
| 14 | 67006425 | Screw (3) |
|
Immediately | $ 6.95 | ||||
| 15 | 67007111 | Bracket, Solenoid |
|
$ 21.16 | |||||
| 16 | 67006346 | Washer |
|
$ 15.21 | |||||
| 17 | WP63052-2 | Yoke, Ice Dispenser (Replaces: 63052-1) |
|
Immediately | $ 68.91 | ||||
| 18 | 67006347 | Yoke, Solenoid |
|
$ 9.95 | |||||
| 19 | 67006348 | Spring, Solenoid |
|
$ 12.80 | |||||
| 20 | W10142628 | Foil, Ice Box |
|
$ 55.83 |
