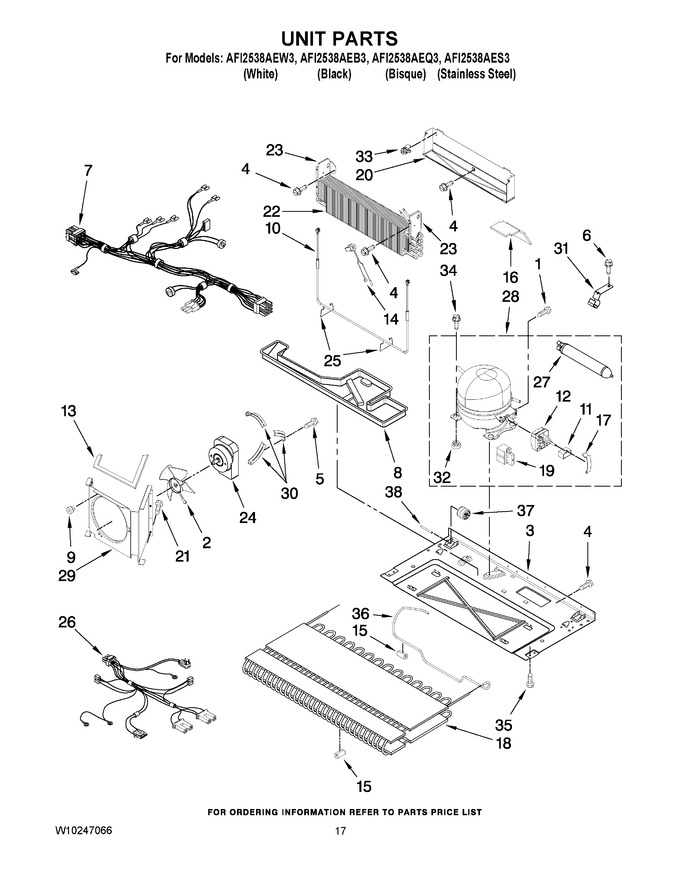

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw   (Replaces: 67006433)				$ 7.32
2	W10156818		Blade, Fan   (Replaces: W10162928)			Immediately	$ 62.11
3	12457108		Base				$ 93.58
4	67006425		Screw			Immediately	$ 6.95
5	WP67004954		Screw   (Replaces: 67004954)				$ 7.79
6	WP33001882		Screw, Clip   (Replaces: 67006737)				$ 79.72
7	W10850438		Harness, Evap Heater   (Replaces: W10119239)			Immediately	$ 306.39
8	WP12579803		Pan, Drain   (Replaces: 12579803)				$ 245.45
9	61004743		Grommet				$ 5.51
10	W10162932		Evaporator Heater		Appelez-nous	-
11	W10613606		Capacitor (production)   (Replaces: 67005562)			Immediately	$ 86.59
11	WPW10662129		Capacitor (service)   (Replaces: 1118576)			Immediately	$ 58.86
12	4387535		Overload (service)   (Replaces: 2159596)				$ 181.95
12	W10613606		Overload (production (includes Relay))   (Replaces: 67005561)			Immediately	$ 86.59
13	WP854334		Seal, Condenser Shroud   (Replaces: 61003210)				$ 13.28
14	WP67006387		Thermostat, Defrost   (Replaces: 67006387)			Immediately	$ 117.68
15	67005680		Grommet (7)				$ 21.05
16	12820504		Pad-acoustic				$ 52.08
17	67007052		Clip, Capacitor		Appelez-nous	-
18	WP67006131		Condenser   (Replaces: 67006131)				$ 366.74
19	2183454		Relay (service Only)		Appelez-nous	-
20	W11547653		Tray, Drip   (Replaces: 12225403WD)				$ 54.30
21	67007110		Screw		Appelez-nous	-
22	12002730		Evaporator   (Replaces: W10162998)				$ 346.32
23	12963102SP		Support-ev (right Side)		Appelez-nous	-
23	12963002SP		Support-ev (left Side)		Appelez-nous	-
24	W11613295		Motor, Fan   (Replaces: 67004432)			Immediately	$ 136.84
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 141.12
26	13060201		Harness, Unit		Appelez-nous	-
27	WPW10143759		Drier (service)   (Replaces: W10143759)			Immediately	$ 30.78
28	W10160407		Compressor (includes Items 11, 12, 17, 27, & 35)   (Replaces: 67005565)				$ 599.92
29	W10162963		Shroud		Appelez-nous	-
30	WP67004953		Bracket, Fan Motor   (Replaces: 67004953)				$ 68.83
31	10547003		Clip, Drier		Appelez-nous	-
32	WPW10169124		Grommet (4) (production)   (Replaces: 67003493)			Immediately	$ 7.19
32	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
33	10623002		Clip, Evaporator				$ 11.53
34	12846902		Screw   (Replaces: 67006432)				$ 12.99
35	12992101		Screw   (Replaces: 67006573)		Appelez-nous	-
36	WP12866903		Tube, Discharge   (Replaces: 12866903)			Immediately	$ 133.53
37	WP67005149		Roller (2)   (Replaces: 67005149)			Immediately	$ 22.02
38	67006434		Axle			Immediately	$ 7.52
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09

    View Diagram in Separate Window       Print Part List
