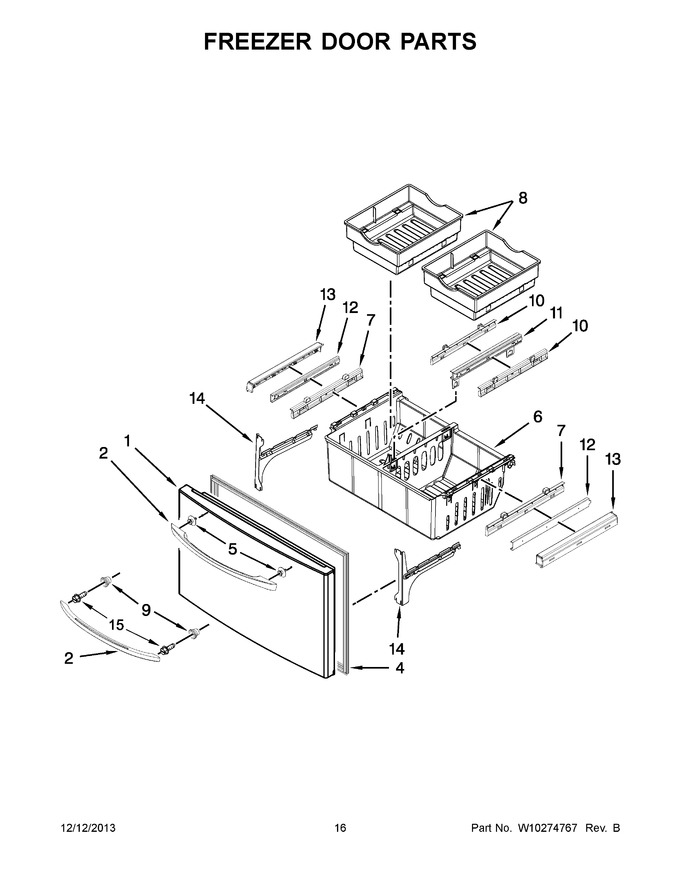

09 - Freezer Door Parts


10 - Dispenser Front Parts


11 - Unit Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977820QQ		Door, Freezer (bisque)		Appelez-nous	-
1	12977811SQ		Door, Freezer (stainless)		Appelez-nous	-
1	12977820WQ		Door, Freezer (white)		Appelez-nous	-
1	12977820BQ		Door, Freezer (black)		Appelez-nous	-
2	W10197306		Handle (stainless)		Appelez-nous	-
2	W10119671		Handle (black)		Appelez-nous	-
2	W10119670		Handle (bisque)		Appelez-nous	-
2	W10119669		Handle (white)		Appelez-nous	-
4	WPW10443321		Gasket, Door (white)   (Replaces: W10164043)				$ 359.84
4	WPW10436253		Gasket, Door (black)   (Replaces: W10164044)				$ 360.89
5	WP12992902		Screw   (Replaces: 12992902)				$ 11.91
6	12924801SP		Bin, Lower		Appelez-nous	-
7	W10166742		Adapter, Bin (outer)   (Replaces: 12925401SP)				$ 98.12
8	WP12924903		Bin, Upper Freezer   (Replaces: 12924903)				$ 132.30
9	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 12.56
10	12925404SP		Adapter, Center Bin				$ 45.32
11	WPW10235357		Assembly, Glide And Bracket   (Replaces: 12969701)			Immediately	$ 330.98
12	WPW10235367		Glide, Upper   (Replaces: 12925101)				$ 313.43
13	WP67006368		Retainer, Glide (right Hand)   (Replaces: 12925502SP)				$ 192.90
13	W10826788		Retainer, Glide (left Hand)   (Replaces: 12925501SP)				$ 57.50
14	WPW10330993		Bracket, Door Slide (right Hand)   (Replaces: W10122148)				$ 166.09
14	WPW10330991		Bracket, Door Slide (left Hand)   (Replaces: W10122147)				$ 164.31
15	WP3387230		Screw   (Replaces: 12692001)			Immediately	$ 8.54
