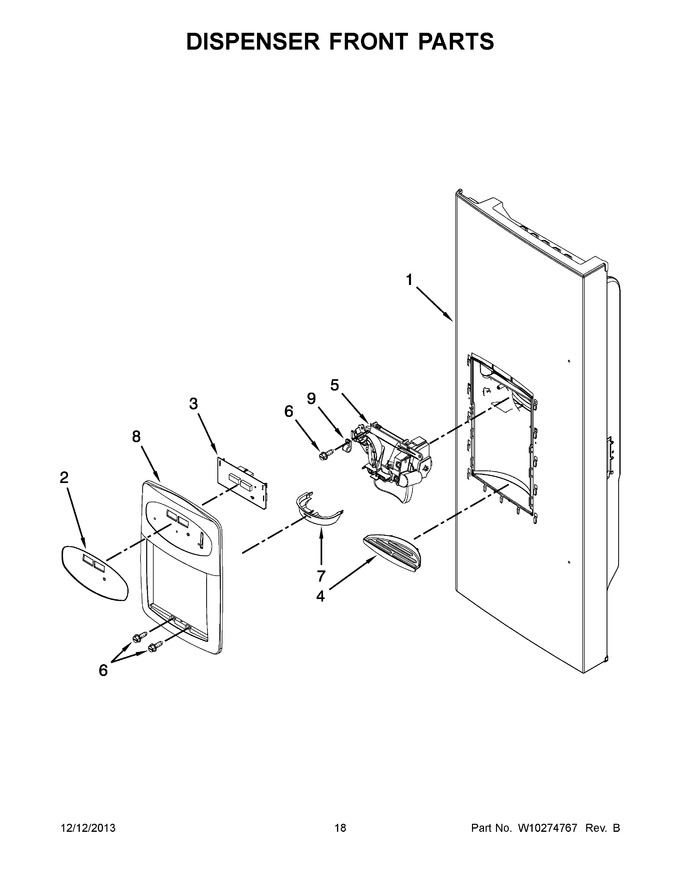

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	13035901W		Keyboard, Dispenser (white)				$ 186.06
2	13035901B		Keyboard, Dispenser (black)		Appelez-nous	-
2	13035901Q		Keyboard, Dispenser (bisque)		Appelez-nous	-
3	67006294		Board, Display   (Replaces: 12939601)				$ 270.03
4	WP12999301B		Sump, Dispenser (black)   (Replaces: 12999301B)			Immediately	$ 17.82
4	12999301W		Sump, Dispenser (white)				$ 41.67
4	12999301Q		Sump, Dispenser (bisque)		Appelez-nous	-
5	WP13005701B		Assembly, Chute Extension And Yoke (includes Switch) (black)   (Replaces: 13005701B)				$ 230.24
5	13005701Q		Assembly, Chute Extension And Yoke (includes Switch) (bisque)		Appelez-nous	-
5	13005701W		Assembly, Chute Extension And Yoke (includes Switch) (white)				$ 121.24
6	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 8.43
7	67006295		Ring, Target   (Replaces: 12958301)				$ 55.57
8	12980801W		Facade, Dispenser (white)				$ 29.58
8	12980801B		Facade, Dispenser (black)		Appelez-nous	-
8	12980801Q		Facade, Dispenser (bisque)		Appelez-nous	-
9	M0108106		Clamp, Tube				$ 69.95

    View Diagram in Separate Window       Print Part List
