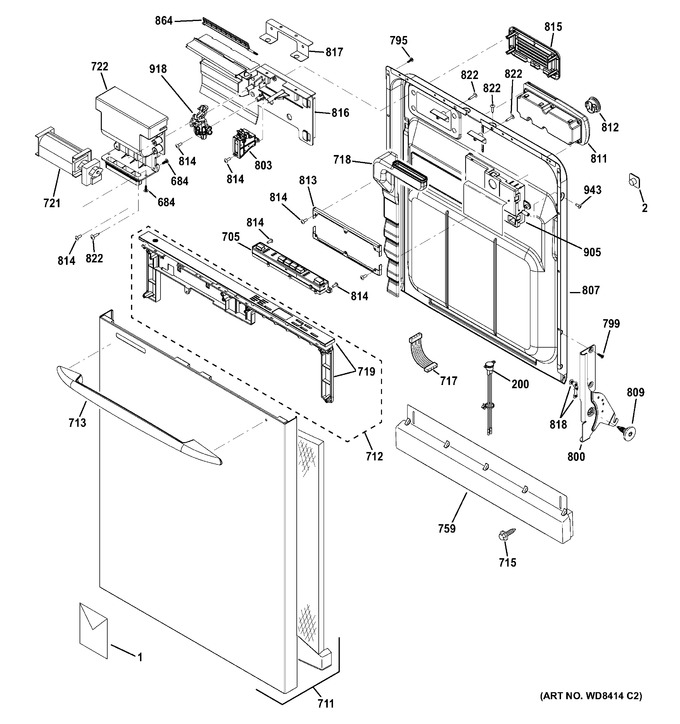

1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly
5 - Motor-pump Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-55078 | Pm Manual Use & Care |
|
- | |||||
| 1 | 31-30284 | Pm Install Instructions |
|
- | |||||
| 1 | 31-30637 | Pm Sheet Mini Manual |
|
- | |||||
| 2 | WD01X10553 | Lens Indicator |
|
- | |||||
| 200 | WG04A01172 | Tco Assembly (Replaces: WD01X10537) |
|
$ 92.17 | |||||
| 684 | WD02X10166 | Scr 8-18 Ab Hw 1/2 Ss |
|
- | |||||
| 705 | WG04L03138 | Button Asm Silicone (Replaces: WD01X10536) |
|
Immediately | $ 162.14 | ||||
| 711 | WD34X11765 | Panel Asm Outer |
|
- | |||||
| 712 | WD27X10362 | Sevice Kit For Fff-ss |
|
- | |||||
| 713 | WD13X10023 | Handle Profile Dw Bk |
|
- | |||||
| 715 | WD02X10085 | Screw 8-18 B 1hw 1/2 S N |
|
- | |||||
| 717 | WD01X10557 | Harness Hmi Asm |
|
- | |||||
| 718 | WD12X10190 | Conduit Exhaust Asm |
|
- | |||||
| 719 | WD27X10343 | Console Cover Asm |
|
- | |||||
| 721 | WG04F03674 | Blower Dishwasher (Replaces: WD26X10056) |
|
$ 183.41 | |||||
| 722 | WG04F04688 | Inlet Transition (Replaces: WD12X10351) |
|
$ 57.27 | |||||
| 759 | WD27X10206 | Toekick Asm |
|
- | |||||
| 795 | WG04A00378 | Screw (Replaces: WD2X444) |
|
$ 3.97 | |||||
| 799 | WD02X10201 | Scr 10-24 Tap Rnp 1/2 |
|
- | |||||
| 800 | WG04L01512 | Arm Hinge Lh Asm (Replaces: WD14X10046) |
|
$ 217.35 | |||||
| 800 | WD14X10047 | Arm Hinge Rh Asm |
|
- | |||||
| 803 | WG02F02962 | Latch (Replaces: WD13X10031) |
|
$ 82.11 | |||||
| 807 | WD31X10129 | Door Inner & Gasket |
|
- | |||||
| 809 | WG04A01243 | Screw 10-32gx Flt25 615 (Replaces: WD02X10084) |
|
$ 3.97 | |||||
| 811 | WG04F00692 | Module Rinse And Cap Asm (Replaces: WD12X10163) |
|
Immediately | $ 171.12 | ||||
| 812 | WG04L00093 | Cap Rinse Asm (Replaces: WD12X10122) |
|
$ 39.70 | |||||
| 813 | WG04A00035 | Bracket Detergent Displa (Replaces: WD01X10207) |
|
$ 6.35 | |||||
| 814 | WD02X10104 | Scr 8-10 Pl Trp 1/2 S |
|
- | |||||
| 815 | WG04L01582 | Cover Vent (Replaces: WD12X10127) |
|
$ 30.18 | |||||
| 816 | WD01X10548 | Vent Asm |
|
- | |||||
| 817 | WD01X10551 | Latch Bracket |
|
- | |||||
| 818 | WG04L01539 | Bearing Hinge Arm (Replaces: WD12X10313) |
|
$ 10.54 | |||||
| 822 | WD02X10200 | Screw |
|
- | |||||
| 864 | WD12X10067 | Flapper Vent |
|
- | |||||
| 905 | WG04A02628 | Ps Kit Ap3rtp (Replaces: WD21X10439) |
|
$ 280.17 | |||||
| 918 | WG04F01276 | Vent Driver Asm (Replaces: WD21X10172) |
|
$ 69.95 | |||||
| 943 | WZ05X0219 | Screw |
|
- |
