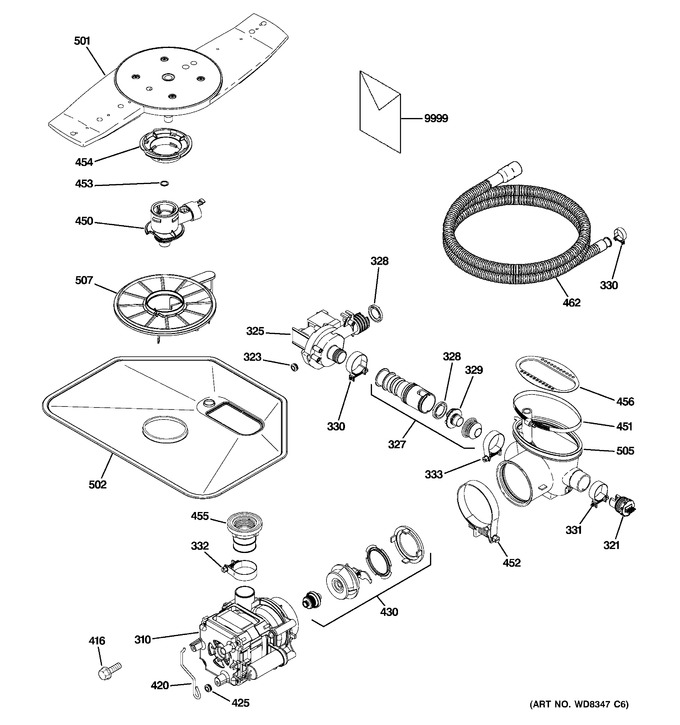

1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly
5 - Motor-pump Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 310 | WG04F04741 | Mechanism Asm (Replaces: WD26X10038) |
|
Immediately | $ 282.59 | ||||
| 321 | WD21X10272 | Sensor Turbidity |
|
- | |||||
| 323 | WD01X10269 | Grommet |
|
- | |||||
| 325 | WG02F03017 | Replacing Wd26x10042 (Replaces: WD26X10048) |
|
Immediately | $ 205.08 | ||||
| 327 | WD12X10279 | Adaptor Pump Asm |
|
- | |||||
| 328 | WD01X10406 | Valve Flapper Dual Pump |
|
- | |||||
| 329 | WD01X10405 | Seat Check Valve |
|
- | |||||
| 330 | WG04A00072 | Clamp (Replaces: WD01X10103) |
|
$ 9.53 | |||||
| 331 | WG04A00073 | Clamp (Replaces: WD01X10104) |
|
Immediately | $ 12.71 | ||||
| 333 | WD01X10105 | Clamp |
|
- | |||||
| 416 | WD02X10141 | Scr 10-32 Tt Hex .575s |
|
- | |||||
| 420 | WD01X10211 | Hanger Mech Assy |
|
- | |||||
| 425 | WD01X10101 | Grommet |
|
- | |||||
| 430 | WG02A00446 | Kit - Impeller Asm (Replaces: WD19X10038) |
|
$ 118.07 | |||||
| 450 | WD18X10050 | Hub Venturi Asm |
|
- | |||||
| 451 | WG04A01069 | Clamp Sump (Replaces: WD01X10210) |
|
$ 19.06 | |||||
| 452 | WG04A00077 | Clamp Hose (Replaces: WD1X1392) |
|
$ 15.88 | |||||
| 453 | WG04A01023 | Bearing Spray Arm Low (Replaces: WD01X10107) |
|
$ 3.97 | |||||
| 454 | WG04A01182 | Nut Hub Fine Filter (Replaces: WD12X10061) |
|
Immediately | $ 57.25 | ||||
| 455 | WG04F00179 | Connector Pump Assy (Replaces: WD18X10010) |
|
Immediately | $ 52.48 | ||||
| 456 | WG04L01844 | Plate Sump (Replaces: WD01X10219) |
|
$ 240.81 | |||||
| 462 | WG04F00333 | Drain Tube Asm (Replaces: WD24X10035) |
|
Immediately | $ 92.96 | ||||
| 501 | WD22X10063 | Arm Spray Low Asm |
|
- | |||||
| 502 | WD22X10038 | Filter Coarse |
|
- | |||||
| 505 | WG01L00289 | Sump Inlet (Replaces: WD18X10026) |
|
Immediately | $ 83.70 | ||||
| 507 | WG04F04636 | Filter Fine Asm (Replaces: WD12X10109) |
|
Immediately | $ 109.01 | ||||
| 9999 | WG04A01014 | Bag And Bracket Asm (Replaces: WD35X10372) |
|
$ 25.41 | |||||
| WG03F00838 | Valve Water Inlet |
|
Immediately | $ 65.23 | |||||
| WG04A00871 | Nut Water Inlet |
|
$ 12.71 | ||||||
| WG04A01129 | Inner Rail Upr Rack Asm |
|
$ 84.41 | ||||||
| WG04A02628 | Module Control Asm Kit |
|
$ 280.17 | ||||||
| WG04A02643 | Module Control Asm Kit |
|
$ 181.44 | ||||||
| WG04F00096 | Cable Asm |
|
Immediately | $ 15.88 | |||||
| WG04L00110 | Cover Water Inlet |
|
$ 9.53 | ||||||
| WG04L00218 | Gasket Water Inlet |
|
$ 21.63 | ||||||
| WG04L01582 | Cover Vent |
|
$ 30.18 | ||||||
| WG04L01851 | Pulley Hinge |
|
$ 63.62 |
