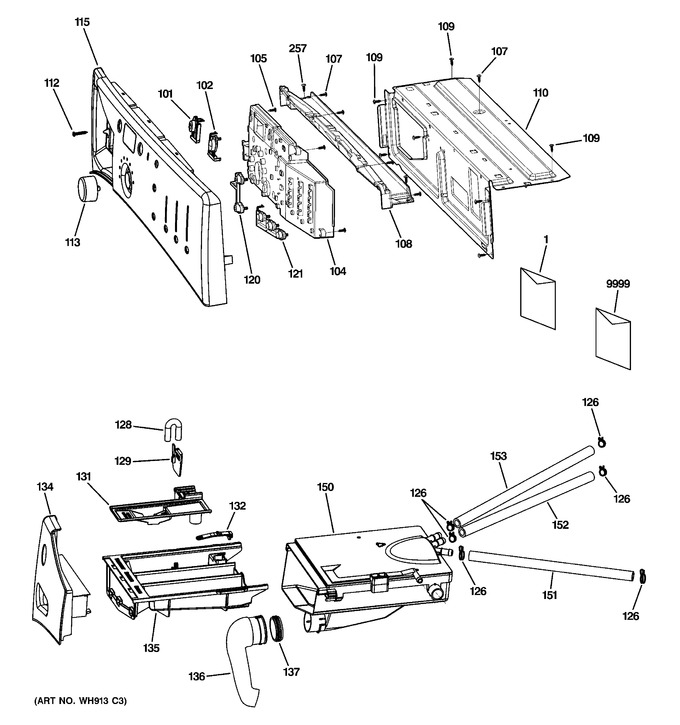

SELECT A DIAGRAM

1 - Controls & Dispenser


2 - Cabinet & Top Panel


3 - Door


4 - Tub & Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-16608		Pm Mini Manual		Appelez-nous	-
1	49-90360-4		Use & Care Manual		Appelez-nous	-
101	WG04F04779		Power Button   (Replaces: WH01X10320)				$ 19.06
102	WH01X10321		Start Pause Button		Appelez-nous	-
104	WG04F03584		Control Board Asm   (Replaces: WH12X10520)				$ 240.02
105	WH02X10181		Screw St3.5 X 11		Appelez-nous	-
107	WH02X10183		Screw St4*13		Appelez-nous	-
108	WH16X10071		Control_rear_cover		Appelez-nous	-
109	WH02X10184		Screw_st4.2 X 13		Appelez-nous	-
110	WH46X10122		Front Top Bracket		Appelez-nous	-
112	WH02X10185		Screw_st4*25		Appelez-nous	-
113	WH11X10050		Select Cycle Knob Asm Ww		Appelez-nous	-
115	WH42M1120		Control Panel Asm Ww		Appelez-nous	-
120	WH12X10352		Rinse Button Wh		Appelez-nous	-
121	WH12X10354		Soil Speed Temp Button		Appelez-nous	-
126	WH01X10324		Inlet Pipe Clamp		Appelez-nous	-
128	WH41X10112		Siphon_pipe		Appelez-nous	-
129	WH41X10266		Liquid Detergent Insert		Appelez-nous	-
131	WG04F03755		Softener Bleach Cover   (Replaces: WH41X10155)				$ 27.00
132	WG04F00344		Drawer Latch Level   (Replaces: WH01X10245)				$ 4.17
134	WG04F00284		Dispenser Dwr Front Ww   (Replaces: WH41X10177)				$ 62.96
135	WH41X10278		Drawer		Appelez-nous	-
136	WH41X10118		Water_inlet_pipe		Appelez-nous	-
137	WH41X10119		Dispenser_seal		Appelez-nous	-
150	WH41X10284		Main Box Diverter Asm		Appelez-nous	-
151	WH41X10156		Main Inlet Water Hose		Appelez-nous	-
152	WH41X10157		Bleach Inlet Water Hose		Appelez-nous	-
153	WH41X10158		Hot Inlet Water Hose		Appelez-nous	-
257	WH02X10201		Screw_st4.2*13		Appelez-nous	-
9999	WE25X10028		Kit - Stacking Wsh/dry		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
