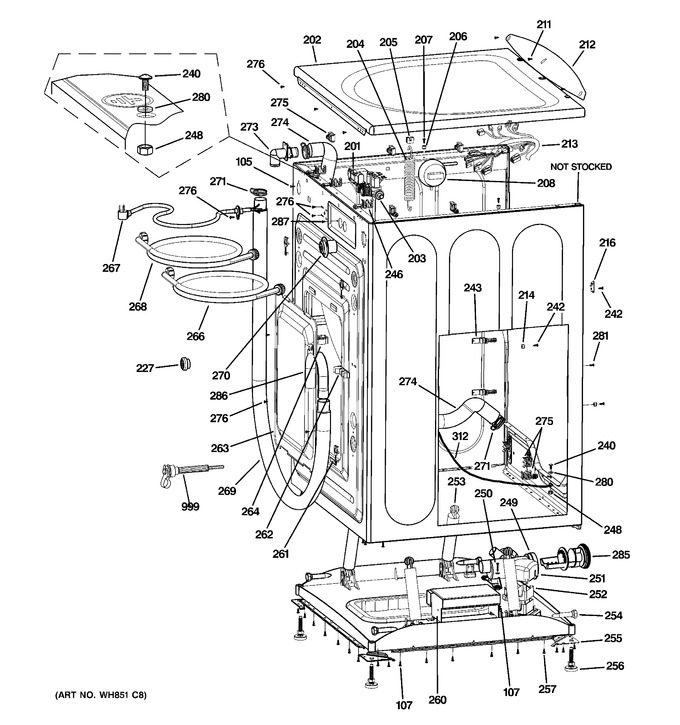

1 - Controls & Dispenser
2 - Cabinet & Top Panel
3 - Door
4 - Tub & Motor
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 105 | WH02X10181 | Screw St3.5 X 11 |
|
- | |||||
| 107 | WH02X10183 | Screw St4*13 |
|
- | |||||
| 201 | WH41X10298 | Emi Filter |
|
- | |||||
| 202 | WH44X10173 | Top Panel Asm Ww |
|
- | |||||
| 203 | WG04F00002 | 2 In 3 Out Water Valve (Replaces: WH13X10029) |
|
Immediately | $ 148.93 | ||||
| 204 | WG04F01050 | Suspension_spring (Replaces: WH05X10009) |
|
Immediately | $ 56.81 | ||||
| 205 | WG04A00964 | Spring_hanger (Replaces: WH01X10251) |
|
Immediately | $ 3.97 | ||||
| 206 | WH01X10252 | Top_panel_pin |
|
- | |||||
| 207 | WH02X10187 | Screw_st 4.2x14 |
|
- | |||||
| 208 | WH12X10522 | Pressure Switch |
|
- | |||||
| 211 | WH02X10188 | Screw St4x11 |
|
- | |||||
| 212 | WG03L00221 | Top Decoration Cover Ww (Replaces: WH44X10174) |
|
$ 46.42 | |||||
| 213 | WG04A00976 | Wire Harness (Replaces: WH19X10050) |
|
$ 317.44 | |||||
| 214 | WH01X10253 | Front_panel_pin |
|
- | |||||
| 216 | WH16X10073 | Front_panel_hanger |
|
- | |||||
| 227 | WH01X10636 | Inlet Hose Strainer |
|
- | |||||
| 240 | WH02X10198 | Screw_m5*12 |
|
- | |||||
| 242 | WH02X10182 | Screw St4.2*13 |
|
- | |||||
| 243 | WH16X10074 | Wire_catch |
|
- | |||||
| 246 | WH16X10076 | Wire_catch |
|
- | |||||
| 248 | WH02X10199 | Nut_m5 |
|
- | |||||
| 249 | WG04F12336 | Pump (Replaces: WH23X10028) |
|
Immediately | $ 146.24 | ||||
| 250 | WH02X10200 | Screw_washer_st4*25 |
|
- | |||||
| 251 | WH44X10176 | Wiring_cover |
|
- | |||||
| 252 | WH44X10177 | Inverter Connectors Shie |
|
- | |||||
| 253 | WH01X10260 | Damper |
|
- | |||||
| 254 | WH01X10261 | Damper Pin |
|
- | |||||
| 255 | WH16X10077 | Conner Bracket |
|
- | |||||
| 256 | WG04F01833 | Leg Asm (Replaces: WH46X10130) |
|
$ 34.94 | |||||
| 257 | WH02X10201 | Screw_st4.2*13 |
|
- | |||||
| 260 | WH12X10519 | Inverter |
|
- | |||||
| 261 | WH44X10178 | Shipping_screw_cover |
|
- | |||||
| 262 | WH01X10262 | Outside_drain_hose_catch |
|
- | |||||
| 263 | WH46X10132 | Cabinet_rear_cover |
|
- | |||||
| 264 | WH01X10263 | Inside_drain_hose_catch |
|
- | |||||
| 266 | WW03L00236 | Main_water_hose_cold (Replaces: WH41X10286) |
|
$ 83.70 | |||||
| 267 | WH19X10051 | Power Cord |
|
- | |||||
| 268 | WW03L00236 | Main_water_hose_hot (Replaces: WH41X10287) |
|
$ 83.70 | |||||
| 269 | WG04F00643 | Outside_drain_hose (Replaces: WH41X10126) |
|
$ 99.93 | |||||
| 270 | WH01X10264 | Vent_hose_coupling |
|
- | |||||
| 271 | WH01X10265 | Drain_hose_clamp |
|
- | |||||
| 273 | WG04F00309 | Drain_hose_coupling (Replaces: WH01X10266) |
|
$ 7.55 | |||||
| 274 | WH41X10127 | Inside_drain_hose |
|
- | |||||
| 275 | WH16X10078 | Wire_catch_1 |
|
- | |||||
| 276 | WH02X10203 | Screw St4.2*11 |
|
- | |||||
| 280 | WH02X10218 | Lock Washer |
|
- | |||||
| 281 | WH02X10219 | Screw_st4*10 |
|
- | |||||
| 285 | WG04A05158 | Pump Filter (Replaces: WH23X10029) |
|
$ 38.12 | |||||
| 286 | WG04F04381 | Drain Hose Guide U-shape (Replaces: WH41X10133) |
|
$ 8.34 | |||||
| 287 | WH02X10251 | Screw M4*8 |
|
- | |||||
| 312 | WH19X10067 | Ground Wire |
|
- | |||||
| 999 | WG04A01284 | Kit - Shipping Bolt (Replaces: WH49X10047) |
|
$ 207.23 |
