Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 49-60667 Pm Guide Owners Appelez-nous -
1 31-46255 Pm Mini Wiring Manual Appelez-nous -
2 WR02X12257 Scr 4-10 Pl Pnp 3/4 Ss Appelez-nous -
7 WR12X10824 Handle Asm Sxs Appelez-nous -
8 WR02X13502 Rivet Clinch Appelez-nous -
9 WR01A00256 Fastener Handle Ss   (Replaces: WR01X10681) Special Order $ 6.62

12 WR02X13424 Door Stop Appelez-nous -
14 WR24X10258 Gasket Appelez-nous -
15 WR02X10638 Cam Closure Fz Wh Appelez-nous -
23 WR71X10355 Module Shelf Fz Fixed Appelez-nous -
31 WR17X12231 Grill Recess Appelez-nous -
36 WR01F01784 Solenoid Asm   (Replaces: WR62X10055) Special Order $ 80.09

45 WR2X8818 Retainer Recess Door Appelez-nous -
55 WR02X12023 Board Asm Disp Lighting Appelez-nous -
58 WR17X12489 Housing Shield Disp Appelez-nous -
62 WR01L01914 Door Recess Asm   (Replaces: WR17X11653) Special Order $ 58.69

63 WG03A00047 Spring Recess Door   (Replaces: WR02X10585) In-Stock Immediately $ 3.57

67 WR01L00935 Crank Door Recess   (Replaces: WR17X10706) Special Order $ 11.44

69 WR01L02041 Funnel Ice Dispenser   (Replaces: WR17X12983) Special Order $ 16.35

70 WR17X13039 Paddle Asm Appelez-nous -
72 WR01F03637 Switch   (Replaces: WR23X10224) In-Stock Immediately $ 15.72

74 WR01A00922 Spring Torsion   (Replaces: WR02X12256) Special Order $ 21.44

80 WR01F02845 Union Connector Reg   (Replaces: WR02X11330) In-Stock Immediately $ 17.15

93 WR55X10946 Dispenser Control Asm Appelez-nous -
121 WR02X12022 Lever Lock Handle Appelez-nous -
122 WR71X10256 Module Support Fz Appelez-nous -
123 WR71X10358 Module Support Fz Appelez-nous -
124 WR21X10111 Basket Wire Tiltout Fz Appelez-nous -
125 WR21X10110 Basket Wire Tiltout Fz Appelez-nous -
150 WR71X10359 Module Support Fz Appelez-nous -
154 WR01X10632 Scr 10-18 Pl Ph 1/2 S Appelez-nous -
155 WR02X10643 Bracket Handle Lock Appelez-nous -
854 WR23X10665 Harness Recess Dispensor Appelez-nous -
900 WR78X12462 Door Foam Asm Fz Appelez-nous -
903 WR01X10208 Thimble Door Btm Fz Wh Appelez-nous -
904 WR01X10582 Scr 10-16 Appelez-nous -
911 WR01X10955 Thimble Door Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

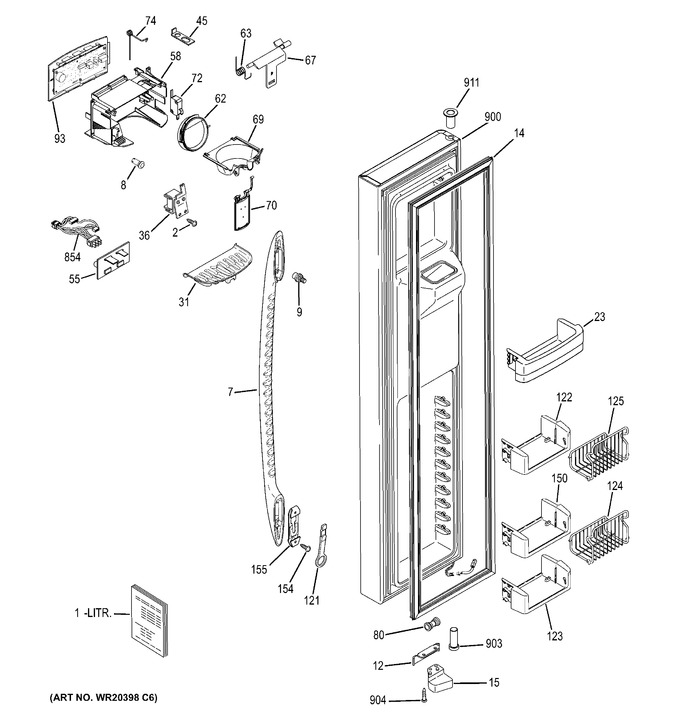

Diagram for GSE28VGBAFWW
