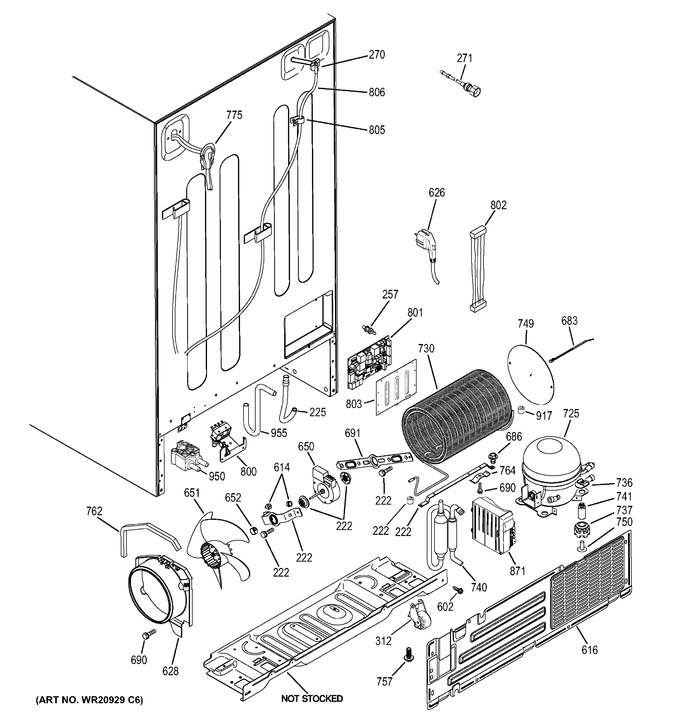

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 222 | WR01L03253 | Knob Pan Chill (Replaces: WR02X10666) |
|
$ 6.08 | |||||
| 225 | WR01F01884 | Tube Drain (Replaces: WR02X11426) |
|
Immediately | $ 32.88 | ||||
| 257 | WR02X10663 | Stand Off |
|
- | |||||
| 270 | WR17X11506 | Grommet And Tube Asm |
|
- | |||||
| 271 | WR49X10182 | Service Kit Water Line |
|
- | |||||
| 312 | WG03L06838 | Wheel Mobility Rear (Replaces: WR02X10695) |
|
$ 17.15 | |||||
| 602 | WR01X10592 | Scr 1/4-14 Ab Ihw 3/4 S |
|
- | |||||
| 614 | WR01A00163 | Bumper Lid (Replaces: WR02X10540) |
|
Immediately | $ 5.72 | ||||
| 616 | WR82X10100 | Access Cover |
|
- | |||||
| 626 | WR23X10468 | Cord Power Asm |
|
- | |||||
| 628 | WR01L04391 | Shroud Condenser (Replaces: WR17X12668) |
|
$ 23.58 | |||||
| 650 | WR60X10216 | Motor Dc Cond Fan |
|
- | |||||
| 651 | WR01F02003 | Blade Cond Fan Asm (Replaces: WR60X10206) |
|
$ 10.36 | |||||
| 652 | WG03F01616 | Ring Compression (Replaces: WR02X12149) |
|
$ 3.57 | |||||
| 683 | WR02X11027 | Wire Tie |
|
- | |||||
| 686 | WR01X10252 | Scr 10-32 Tt Hxw 5/16 S |
|
- | |||||
| 690 | WR1X1466 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 691 | WR02X10593 | Bracket Cond Fan (rear) |
|
- | |||||
| 725 | WR87X10180 | Inverter Compressor Emb |
|
- | |||||
| 730 | WR01F02892 | Cond Asm Formed (Replaces: WR84X10022) |
|
$ 403.54 | |||||
| 736 | WR2X8203 | Clip Compressor Mount |
|
- | |||||
| 737 | WR01F00846 | Grommet (Replaces: WR02X10099) |
|
$ 7.15 | |||||
| 740 | WG03A03157 | Dryer Bifurcated Xh9 (Replaces: WR86X96) |
|
Immediately | $ 138.06 | ||||
| 741 | WR1X1779 | Stud Mtg Compr |
|
- | |||||
| 749 | WR17X11039 | Baffle Cond Air |
|
- | |||||
| 750 | WR1X1786 | Screw 10-32 Tr 1/2 |
|
- | |||||
| 757 | WR01X10622 | Scr 10-32 B Ihxw 1/2 |
|
- | |||||
| 762 | WR14X10053 | Foam Strip Se Adh |
|
- | |||||
| 764 | WR2X9000 | Clip, Cond Mnt |
|
- | |||||
| 775 | WR17X13124 | Cover Water Line |
|
- | |||||
| 800 | WR57X10089 | Water Valve |
|
- | |||||
| 801 | WR55X11170 | Main Board |
|
- | |||||
| 802 | WR23X10504 | Harness Board Indiv |
|
- | |||||
| 803 | WR02X12025 | Main Board Enclosure Asm |
|
- | |||||
| 805 | WR02X12265 | Clamp Tube |
|
- | |||||
| 806 | WR01F01881 | Tube Plastic (Replaces: WR17X11625) |
|
$ 14.29 | |||||
| 871 | WR55X10594 | Inverter Asm Comp Mount |
|
- | |||||
| 917 | WR02X13573 | Grommet |
|
- | |||||
| 950 | WR57X10069 | Flow Meter |
|
- | |||||
| 955 | WR02X13312 | Jumper Tube Flow Meter |
|
- |
