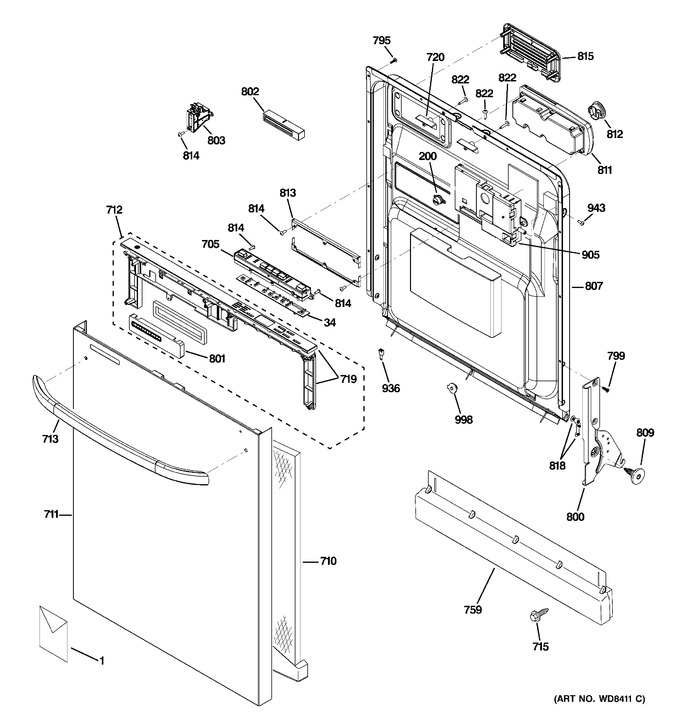

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-55077		Pm Manual Use & Care		Appelez-nous	-
1	31-30283		Pm Instruction Install		Appelez-nous	-
1	31-30634		Pm Mini Manual		Appelez-nous	-
200	WG04F05791		Thermostat   (Replaces: WD01X10567)				$ 22.87
705	WD01X10516		Button Asm Silicon Ww		Appelez-nous	-
705	WD21X10467		Console Asm Lightpipe		Appelez-nous	-
710	WD01X10514		Insulation Panel		Appelez-nous	-
711	WD27X10281		Panel Front Finished		Appelez-nous	-
712	WD27X10313		Console Asm Kit		Appelez-nous	-
713	WD09X10067		Handle Ss		Appelez-nous	-
715	WD02X10085		Scr 8-18 B 1hw 1/2 S N		Appelez-nous	-
720	WD01X10523		Bracket Support Latch		Appelez-nous	-
759	WG04A01327		Toekick Asm   (Replaces: WD27X10219)				$ 365.37
795	WD02X10166		Scr 8-18 Ab Hw 1/2 Ss		Appelez-nous	-
799	WD02X10083		Scr 8-18 B Hxw .480 S		Appelez-nous	-
800	WG04L01732		Hinge Arm Asm Lh   (Replaces: WD14X10025)				$ 24.78
800	WG04L01731		Hinge Arm Asm Rh   (Replaces: WD14X10024)				$ 254.43
801	WD01X10524		Louver Asm Vent		Appelez-nous	-
802	WD01X10545		Foam Vent		Appelez-nous	-
803	WG04F06742		Latch Asm   (Replaces: WD13X10061)				$ 73.08
807	WD31X10128		Door Inner Punched		Appelez-nous	-
809	WD02X10162		Scr 8-32 Hxp 1/4 S		Appelez-nous	-
811	WG04F00692		Module Rinse And Cap Asm   (Replaces: WD12X10163)			Immediately	$ 154.01
812	WG04L00093		Cap Rinse Asm   (Replaces: WD12X10122)				$ 35.73
813	WD12X10146		Backup Flange D Cup		Appelez-nous	-
814	WD02X10104		Scr 8-10 Pl Trp 1/2 S		Appelez-nous	-
815	WG04F06971		Vent   (Replaces: WD12X10368)				$ 32.31
818	WG04L01539		Bearing Hinge Arm   (Replaces: WD12X10313)				$ 10.54
822	WD02X10141		Scr 10-32 Tt Hex .575s		Appelez-nous	-
905	WD21X10471		Control Tactile Asm Kit		Appelez-nous	-
936	WD21X10464		Model Selector Plug Asm		Appelez-nous	-
943	WZ05X0219		Screw		Appelez-nous	-
998	WD01X10563		Lens Asm Kit Ss		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
