SELECT A DIAGRAM

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly

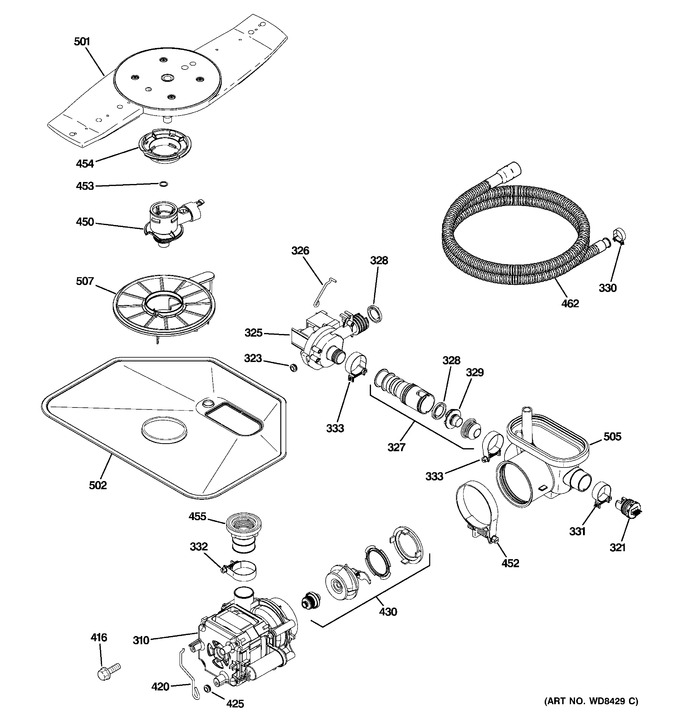

5 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
310	WG04F04741		Mechanism Asm   (Replaces: WD26X10059)			Immediately	$ 254.33
321	WD21X10272		Sensor Turbidity		Appelez-nous	-
323	WD01X10269		Grommet		Appelez-nous	-
325	WD26X10040		Pump Drain Asm		Appelez-nous	-
326	WD01X10292		Hanger Drain Pump		Appelez-nous	-
327	WD12X10308		Adaptor Pump Asm		Appelez-nous	-
328	WD01X10406		Valve Flapper Dual Pump		Appelez-nous	-
329	WD01X10405		Seat Check Valve		Appelez-nous	-
330	WG04A00072		Clamp   (Replaces: WD01X10103)				$ 8.58
331	WD01X10279		Clamp		Appelez-nous	-
332	WG04A00073		Clamp   (Replaces: WD01X10104)			Immediately	$ 11.44
333	WD01X10105		Clamp		Appelez-nous	-
416	WG04A00378		Screw   (Replaces: WD2X444)				$ 3.57
420	WD01X10297		Hanger Motor		Appelez-nous	-
425	WD01X10101		Grommet		Appelez-nous	-
430	WG02A00446		Kit - Impeller Asm   (Replaces: WD19X10038)				$ 106.26
450	WD18X10050		Hub Venturi Asm		Appelez-nous	-
452	WG04A00077		Clamp Hose   (Replaces: WD1X1392)				$ 14.29
453	WG04A01023		Bearing Spray Arm Low   (Replaces: WD01X10107)				$ 3.57
454	WG04A01182		Nut Hub Fine Filter   (Replaces: WD12X10061)			Immediately	$ 51.53
455	WG04F00179		Connector Pump Asm   (Replaces: WD18X10010)			Immediately	$ 47.23
462	WG04F00333		Drain Tube Asm   (Replaces: WD24X10035)			Immediately	$ 83.66
501	WD22X10063		Arm Spray Low Asm		Appelez-nous	-
502	WD22X10029		Filter Coarse		Appelez-nous	-
505	WG04F01040		Sump Inlet   (Replaces: WD18X10008)			Immediately	$ 157.18
507	WG04F04636		Filter Fine Asm   (Replaces: WD12X10109)			Immediately	$ 98.11
	WG03F00838		Valve Water Inlet			Immediately	$ 58.71
	WG04A01393		Console Asm Kit				$ 155.39
	WG04F06714		Board Tactile Top Hmi				$ 242.42
	WG04F06742		Latch Asm				$ 73.08
	WG04L03445		Button Asm Silicon Ww				$ 68.68

    View Diagram in Separate Window       Print Part List
