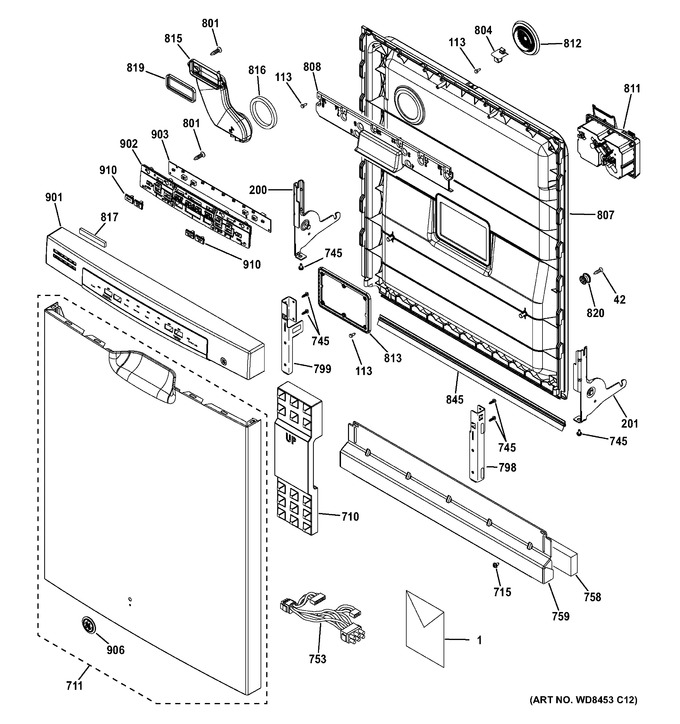

1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly
5 - Sump & Filter Assembly
6 - Sump & Motor Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 165D9739P004 | Insert Mini Manual |
|
- | |||||
| 1 | 31-30642-3 | Pm Minimanual |
|
- | |||||
| 1 | 31-31545 | Pm Install Instructions |
|
- | |||||
| 1 | 49-55089 | Pm Owners Manual |
|
- | |||||
| 42 | WD02X10110 | Screw #8-3/4 L Hx Hd Ss |
|
- | |||||
| 200 | WG04L02003 | Arm Hinge Asm Rh (Replaces: WD14X10050) |
|
$ 78.04 | |||||
| 201 | WD14X10051 | Arm Hinge Asm Lh |
|
- | |||||
| 710 | WD01X10578 | Block Foam Door |
|
- | |||||
| 711 | WD34X11821 | Outer Door Front Ctrl Ss |
|
- | |||||
| 715 | WG04A02147 | Scr 10-32 Gx Hxw 3/8 (Replaces: WD02X10220) |
|
$ 3.97 | |||||
| 745 | WD01X22514 | Scr 10-32 Gx Ihxw 9/16 S |
|
- | |||||
| 753 | WD21X20715 | Harness Asm Door |
|
- | |||||
| 758 | WD01X10581 | Insulation Toe Kick |
|
- | |||||
| 759 | WD27X10392 | Toe Kick Painted Asm |
|
- | |||||
| 798 | WG04A03460 | Brkt Support Hinge Asm (Replaces: WD01X20126) |
|
$ 14.29 | |||||
| 799 | WG04A03459 | Brkt Support Hinge Asm (Replaces: WD01X20127) |
|
$ 14.29 | |||||
| 801 | WB02T10324 | Scr 6-20 Gxb Ihxw 3/8 Ni |
|
- | |||||
| 804 | WG04F06693 | Striker Latch (Replaces: WD13X10071) |
|
Immediately | $ 9.53 | ||||
| 807 | WD31X10139 | Door Inner Plastic |
|
- | |||||
| 808 | WG04L02578 | Pocket Handle (Replaces: WD12X10422) |
|
$ 10.81 | |||||
| 811 | WD12X21054 | Module Detergent |
|
- | |||||
| 812 | WD12X10471 | Vent - Grey/ Hybrid |
|
- | |||||
| 813 | WD12X10420 | Plate Detergent |
|
- | |||||
| 815 | WD12X22517 | Diverter Air Asm |
|
- | |||||
| 816 | WG04L01634 | Door Vent Seal (Replaces: WD08X10092) |
|
Immediately | $ 11.12 | ||||
| 819 | WD08X22476 | Gasket Vent |
|
- | |||||
| 820 | WD01X10576 | Mounting Basket Door |
|
- | |||||
| 845 | WG04F08972 | Gasket Beach Plastic (Replaces: WD08X10090) |
|
Immediately | $ 14.48 | ||||
| 901 | WG04F05541 | Panel Control Asm (Replaces: WD34X11813) |
|
$ 73.11 | |||||
| 902 | WG04F06706 | Silicone Light Pipe (Replaces: WD12X10441) |
|
$ 66.57 | |||||
| 903 | WG04F04982 | Interface User Front (Replaces: WD21X10488) |
|
$ 97.21 | |||||
| 906 | WG04A01013 | Badge Ge Asm (Replaces: WR04X10181) |
|
$ 23.82 | |||||
| 910 | WD09X10082 | Button Tree |
|
- |
