SELECT A DIAGRAM

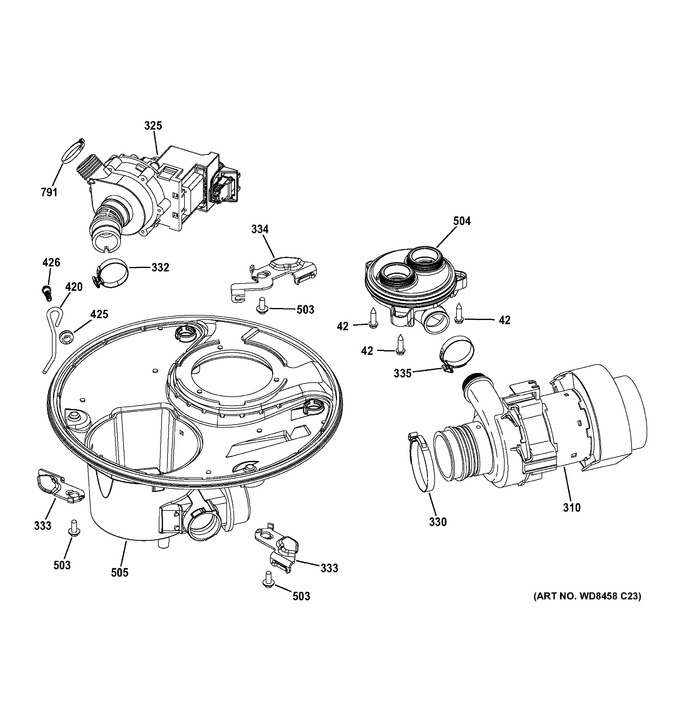

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Sump & Filter Assembly


6 - Sump & Motor Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
42	WD02X10110		Screw #8-3/4 L Hx Hd Ss		Appelez-nous	-
310	WD26X20551		Pump Wash Main Asm		Appelez-nous	-
325	WG04F10705		Pump Drain   (Replaces: WD26X10062)				$ 291.00
330	WG04A01134		Clamp   (Replaces: WD01X10571)			Immediately	$ 21.85
332	WD01X10573		Clamp		Appelez-nous	-
333	WD01X10632		Latch Cam		Appelez-nous	-
334	WD01X10575		Latch Cam		Appelez-nous	-
335	WD01X10572		Clamp		Appelez-nous	-
420	WD01X10579		Hanger Drain Pump		Appelez-nous	-
425	WD01X10101		Grommet		Appelez-nous	-
426	WD02X22781		Scr 10-18 X 5/8		Appelez-nous	-
503	WB01T10103		Scr 10-16 Ab Hxw .532		Appelez-nous	-
504	WD18X10052		Diverter Passive Asm		Appelez-nous	-
505	WD18X10053		Sump Manifold		Appelez-nous	-
791	WW01A00722		Clamp   (Replaces: WD01X10611)				$ 12.71
	WG04F06762		Insulation Tub Blanket				$ 131.95
	WG04F05541		Panel Control Asm				$ 73.11
	WG04F05005		Valve Water Asm			Immediately	$ 87.23
	WG04F04982		User Interface Board				$ 97.21
	WG04F04857		Interrupteur Asm			Immediately	$ 100.20
	WG04F04842		Languette Test - Eau Dure				$ 17.60
	WG04A05239		Module Detergent   (Replaces: WG04F04754)			Immediately	$ 108.73
	WG04F04749		Mid Conduit Asm				$ 34.94
	WG04F04726		Latch Tub Side Standard			Immediately	$ 69.95
	WG04F04678		Hose Wash Pump Inlet				$ 16.35
	WG04F04673		Hose Loop Drain High				$ 41.29
	WG04F04671		Hose Elbow Drain			Immediately	$ 76.30
	WG04F10705		P1 Pump Drain Kit   (Replaces: WG04F04654)				$ 291.00
	WG04A05153		Element Heating Asm   (Replaces: WG04F04624)			Immediately	$ 173.90
	WG04F04573		Control Board Main Good				$ 276.55
	WG04F04480		Adapter Conduit Asm				$ 68.68
	WG04A03389		Ss Tub Gasket & Hinge Kit   (Replaces: WG04A02934)				$ 174.51
	WG04F12108		Pump Drain Kit   (Replaces: WG04A02642)			Immediately	$ 208.41
	WW01A00722		Worm Gear Clamp   (Replaces: WG04A02196)				$ 12.71
	WG04A01785		Ens. Service Lave				$ 45.86
	WG04A01338		Pompe				$ 200.56
	WG04A01161		Kit-strik. Latch & Screw				$ 10.54
	WG04L06024		Gasket Tub Plastic   (Replaces: WG04L05410)			Immediately	$ 92.18
	WG04A01155		Kit-inner Door & Latch				$ 124.60
	WG04A01134		Kit - Piranha Clamps Ps			Immediately	$ 21.85
	WG04F12108		Drain Pump Kit   (Replaces: WG04A01093)			Immediately	$ 208.41
	WG04A01079		Vis			Immediately	$ 33.35
	WG04A01023		Bearing Spray Arm Low - Spacer				$ 3.97
	WG04A01013		Badge Ge Asm				$ 23.82
	WG03L01673		Piranha Outil Diagnostic				$ 390.86
	WG03A02167		Gicleur Ens. Sup.			Immediately	$ 98.12
	WG04A01160		Kit-spray Arm Service				$ 83.84
	WG04L06024		Gasket Tub   (Replaces: WG04L04120)			Immediately	$ 92.18
	WG04L03982		Door Inner Punched				$ 94.63
	WG04F09635		Insulation Toe Kick   (Replaces: WG04L03238)				$ 10.81
	WG04L03089		Funnel Fill				$ 17.03
	WG04F06983		Cover Vent   (Replaces: WG04L02101)				$ 15.54
	WG04L01820		Outer Door Front Ctrl Ss				$ 156.10
	WG04F08972		Gasket Plastic   (Replaces: WG04L01697)			Immediately	$ 14.48
	WG04L01693		Gasket Fill Funnel				$ 13.61
	WG04L01637		End Cap				$ 6.35
	WG04L01634		Door Vent Seal			Immediately	$ 11.12
	WG03A02167		Arm Spray Upper Asm   (Replaces: WG04L01519)			Immediately	$ 98.12
	WG04A05239		Module Detergent   (Replaces: WG04F09253)			Immediately	$ 108.73
	WG04F08051		Ens. Service Performance				$ 292.66
	WG04A05153		Element Chauffant Asm.   (Replaces: WG04F08050)			Immediately	$ 173.90
