SELECT A DIAGRAM

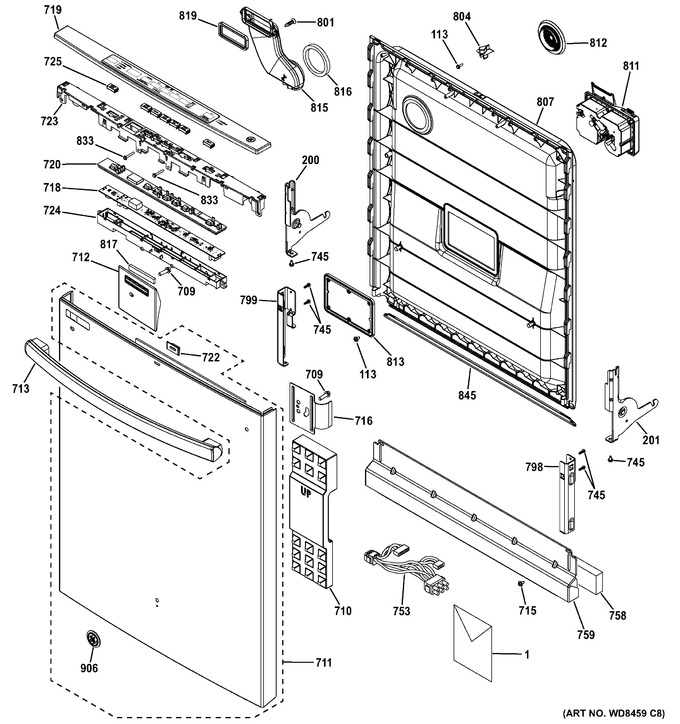

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Sump & Filter Assembly


6 - Sump & Motor Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WD02X10211		Scr 1/4-20 Bt Cb .563 Zn		Appelez-nous	-
1	165D9739P007		Insert Mini Manual		Appelez-nous	-
1	49-55082		Pm Owners Manual		Appelez-nous	-
1	31-31506		Pm Install Instructions		Appelez-nous	-
1	31-30644-3		Pm Minimanual		Appelez-nous	-
709	WB01T10063		Screw 1/4-tpi Fl Hx 9/10		Appelez-nous	-
710	WD01X10585		Block Foam Door		Appelez-nous	-
711	WD34X11827		Door Outer Painted		Appelez-nous	-
712	WD12X10455		Vent Adapter		Appelez-nous	-
713	WD09X10100		Door Handle Asm Wh		Appelez-nous	-
715	WG04A02147		Scr 10-32 Gx Hxw 3/8   (Replaces: WD02X10220)				$ 3.97
716	WD01X10599		Bracket Handle		Appelez-nous	-
718	WD21X10502		Interface User Top		Appelez-nous	-
719	WG04F05105		Console Cvr Graphic Asm   (Replaces: WD34X11834)				$ 63.62
720	WD12X10454		Silicone Light Pipe		Appelez-nous	-
722	WD09X10098		Lens And Adhesive Asm		Appelez-nous	-
723	WG04F05110		Console Top Control   (Replaces: WD12X10469)				$ 27.00
724	WD12X10470		Housing Bottom		Appelez-nous	-
725	WD09X10089		Button And Graphics Asm		Appelez-nous	-
745	WD02X10221		Scr 10-32 Tt Hxw 14/25 S		Appelez-nous	-
753	WD21X10545		Harness Asm Door		Appelez-nous	-
758	WD01X10581		Insulation Toe Kick		Appelez-nous	-
759	WD27X10404		Toe Kick Painted Asm		Appelez-nous	-
798	WG04L02003		Bracket Support Hinge   (Replaces: WD01X10596)				$ 78.04
799	WG04L02002		Bracket Support Hinge   (Replaces: WD01X10597)				$ 76.77
801	WD02X10129		6-19 X 1/4 Torx Pan Head		Appelez-nous	-
804	WD13X10070		Striker Latch		Appelez-nous	-
807	WD31X10142		Door Inner Punched		Appelez-nous	-
811	WG04A05239		Module Detergent   (Replaces: WD12X10415)			Immediately	$ 108.73
812	WG04F06983		Cover Vent   (Replaces: WD12X10423)				$ 15.54
813	WD12X10420		Plate Detergent		Appelez-nous	-
815	WG04F06701		Diverter Air Asm   (Replaces: WD12X10442)				$ 67.82
816	WG04L01634		Door Vent Seal   (Replaces: WD08X10092)			Immediately	$ 11.12
819	WD08X10091		Gasket Vent		Appelez-nous	-
833	WG04A01239		#10x1 Ph Sms   (Replaces: WD2X295)				$ 3.97
845	WG04F08972		Gasket Beach Plastic   (Replaces: WD08X10090)			Immediately	$ 14.48

    View Diagram in Separate Window       Print Part List
