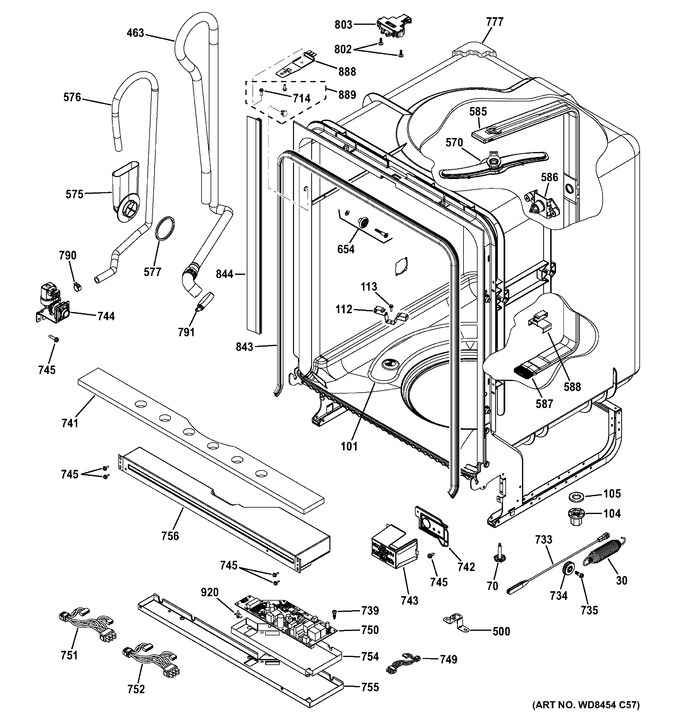

2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly
5 - Sump & Filter Assembly
6 - Sump & Motor Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 30 | WG04A02383 | Spring Door (Replaces: WD03X10037) |
|
Immediately | $ 17.47 | ||||
| 70 | WG01A01600 | Screw Leveling (Replaces: WD12X10417) |
|
Immediately | $ 9.53 | ||||
| 101 | WG04A05153 | Element Heating Asm (Replaces: WD05X10015) |
|
Immediately | $ 173.90 | ||||
| 104 | WD01X10070 | Nut Tower Heater |
|
- | |||||
| 105 | WD1X1168 | Heater Washer |
|
- | |||||
| 112 | WD01X10568 | Support Heater |
|
- | |||||
| 463 | WG04F12155 | Hose Loop Drain High (Replaces: WD24X10067) |
|
Immediately | $ 57.27 | ||||
| 500 | WG04A02313 | Bracket Tco (Replaces: WD01X10577) |
|
$ 451.08 | |||||
| 570 | WG03A02167 | Arm Spray Upper Asm (Replaces: WD22X10088) |
|
Immediately | $ 98.12 | ||||
| 575 | WD12X10413 | Funnel Fill |
|
- | |||||
| 576 | WG04F06735 | Hose Fill (Replaces: WD24X10056) |
|
$ 12.71 | |||||
| 577 | WD08X10087 | Gasket Fill Funnel |
|
- | |||||
| 585 | WG04F06765 | Conduit Main Asm (Replaces: WD12X10414) |
|
$ 60.44 | |||||
| 586 | WD12X10418 | Port Docking Supply |
|
- | |||||
| 587 | WG04F06950 | Seal Conduit (Replaces: WD08X10098) |
|
$ 9.53 | |||||
| 654 | WD12X10433 | Tub Roller And Stud Asm |
|
- | |||||
| 714 | WD02X10083 | Screw 8-18 B Hxw 480 S |
|
- | |||||
| 733 | WG04F04517 | Cable Asm Pulley (Replaces: WD01X10569) |
|
Immediately | $ 19.06 | ||||
| 734 | WD16X10013 | Pulley Hinge |
|
- | |||||
| 735 | WD02X10206 | Pulley Screw |
|
- | |||||
| 741 | WD01X10614 | Insulation Bottom Front |
|
- | |||||
| 742 | WD12X10411 | Bracket Junction Box |
|
- | |||||
| 743 | WG04L01578 | Cover Junction Box (Replaces: WD12X10412) |
|
Immediately | $ 44.46 | ||||
| 744 | WG04F05005 | Valve Water Asm (Replaces: WD15X10015) |
|
Immediately | $ 87.23 | ||||
| 745 | WD02X10221 | Scr 10-32 Tt Hxw 14/25 S |
|
- | |||||
| 749 | WD01X10616 | Wire Tie |
|
- | |||||
| 749 | WD21X10541 | Harness Asm Jumper |
|
- | |||||
| 750 | WG04A03393 | Control Board Main Good (Replaces: WD21X10500) |
|
$ 222.56 | |||||
| 751 | WD21X10542 | Harness Asm Ac |
|
- | |||||
| 752 | WD21X10543 | Harness Asm Dc |
|
- | |||||
| 754 | WD01X10583 | Shield Dielectric |
|
- | |||||
| 755 | WD30X10044 | Control Box Bottom |
|
- | |||||
| 756 | WD27X10390 | Control Box Top |
|
- | |||||
| 777 | WG04F06738 | Insulation Tub Blanket (Replaces: WD01X10612) |
|
$ 75.19 | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 791 | WW01A00722 | Clamp (Replaces: WD01X10611) |
|
$ 12.71 | |||||
| 802 | WR01X10065 | Screw 10-32 Gxtt Flp 595 |
|
- | |||||
| 803 | WG04F04726 | Latch Tub Side Standard (Replaces: WD21X10490) |
|
Immediately | $ 69.95 | ||||
| 843 | WG04L06024 | Gasket Tub (Replaces: WD08X10088) |
|
Immediately | $ 92.18 | ||||
| 844 | WG04L01927 | Trim Tub Wh (Replaces: WD08X10096) |
|
$ 15.54 | |||||
| 888 | WG04A01079 | Ct Screw Asm (Replaces: WD35X10383) |
|
Immediately | $ 33.35 | ||||
| 888 | WG04A03280 | Bracket Countertop (Replaces: WD01X10598) |
|
Immediately | $ 30.76 |
