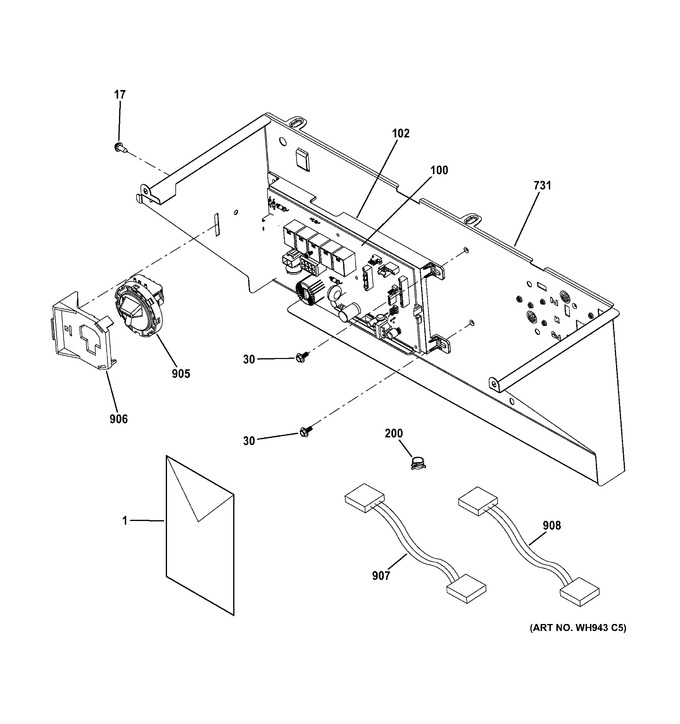

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-16655-5		Pm Install Instructions		Appelez-nous	-
1	31-16657		Pm Mini Manual		Appelez-nous	-
1	49-90417		Pm Use & Care		Appelez-nous	-
17	WW01A00097		Screw   (Replaces: WH2X1217)				$ 3.97
30	WH01M10001		Hex.screw8-32trilobular		Appelez-nous	-
100	WW03F00334		Board Control Asm   (Replaces: WH12X10518)			Immediately	$ 719.65
102	WH16X20555		Support Board		Appelez-nous	-
200	WH01X10592		Clip Hose		Appelez-nous	-
731	WE19M1698		Enclosure Board		Appelez-nous	-
905	WG04F03726		Elec. Prssure Switch   (Replaces: WH12X10511)				$ 95.41
906	WH16X10142		Bracket Pressure Switch		Appelez-nous	-
907	WH19X10083		Harness Pressure Asm		Appelez-nous	-
908	WH19X10084		Harness Extension Asm		Appelez-nous	-
