Diagram # Part Number Description Series Availability Ships Price Add to Cart
20 WE2M302 Screw Appelez-nous -
327 WE1M536 Latch Appelez-nous -
522 WE18X20437 Lint Trap Assembly Appelez-nous -
523 WE01X20427 Grid Appelez-nous -
524 WW02L00754 Slide   (Replaces: WE1M1001) In-Stock Immediately $ 49.25

713 WE10M150 Door Asm Appelez-nous -
714 WW03L00411 Handle Door   (Replaces: WE1M1068) In-Stock Immediately $ 18.78

716 WE9M58 Gasket Door Appelez-nous -
718 WE9M59 Gasket Door Lower Appelez-nous -
750 WW02L00028 Hinge   (Replaces: WE1M1033) In-Stock Immediately $ 9.92


    View Diagram in Separate Window     Print Icon   Print Part List

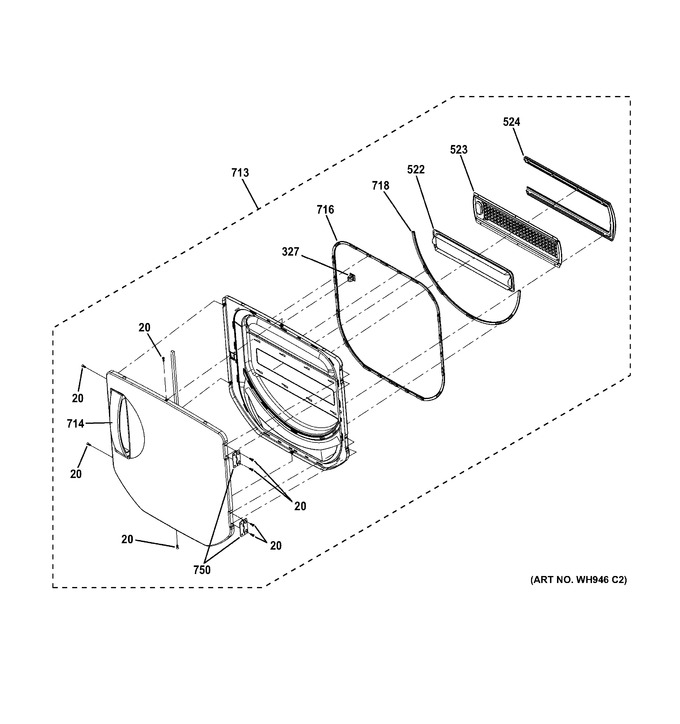

Diagram for GTUP240GM1WW
