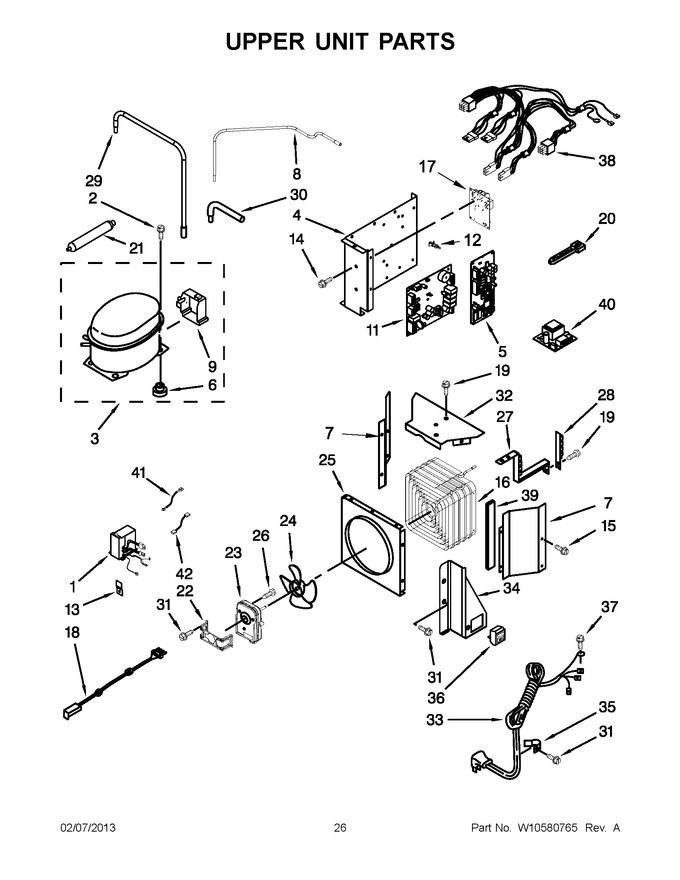

13 - Upper Unit Parts


14 - Lower Unit & Tube Parts


15 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10449006		Inverter Box Assembly   (Replaces: W10449006)				$ 347.43
2	876811		Screw   (Replaces: 489373)				$ 7.01
3	W10841139		Compressor   (Replaces: W10173296)			Immediately	$ 454.96
4	WPW10321056		Housing, Control Board   (Replaces: W10321056)				$ 113.94
5	WP2318054		Control Board Niagara   (Replaces: 2318054)			Immediately	$ 328.43
6	876811		Grommet   (Replaces: 1100826)				$ 7.01
7	W10415668		Support, Condenser (right Hand)		Appelez-nous	-
7	W10415666		Support, Condenser (left Hand)		Appelez-nous	-
8	W10234133		Tube, Heat Loop Transition		Appelez-nous	-
9	2215676		Cover, Terminal				$ 84.92
11	WPW10427079		Board, Control   (Replaces: W10427079)				$ 379.13
12	WP2203075		Spacer Box Box   (Replaces: 2203075)			Immediately	$ 16.93
13	2256328		Bracket, Inverter Mounting		Appelez-nous	-
14	WP488729		Screw   (Replaces: 487539)			Immediately	$ 7.45
15	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
16	2307998		Condenser				$ 459.05
17	WPW10356040		Control, Electronic   (Replaces: W10356040)			Immediately	$ 290.54
18	2310207		Wire Assembly		Appelez-nous	-
19	WP489399		Screw   (Replaces: 489399)				$ 6.57
20	WPW10339879		Tie, Wire   (Replaces: 2155774)				$ 7.47
21	WPW10143759		Drier   (Replaces: W10175593)			Immediately	$ 27.70
22	W10414681		Bracket, Fan Motor (condenser Fan)				$ 71.58
23	W11578915		Motor, Condenser   (Replaces: 2188875)			Immediately	$ 77.99
24	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 89.84
25	W10415670		Orifice, Fan		Appelez-nous	-
26	WP8533993		Screw   (Replaces: 8533993)				$ 10.09
27	2317031		Assembly, Bracket		Appelez-nous	-
28	2317030		Assembly, Arm		Appelez-nous	-
29	2307566		Tube, Drier Transition				$ 16.06
30	W10528578		Tube, Process   (Replaces: 2194319)				$ 35.84
31	W11624204		Screw   (Replaces: 486194)				$ 13.25
32	2309000		Cover, Condenser		Appelez-nous	-
33	WP2310251		Service Cord   (Replaces: 2310251)				$ 80.05
34	W10321055		Bracket, Mounting (power Switch)		Appelez-nous	-
35	549193		Clamp, Power Cord				$ 12.65
36	WP2266802		Switch, Power Disconnect   (Replaces: 2266802)				$ 98.17
37	00487294		Screw   (Replaces: 487294)				$ 157.58
38	W10427091		Assembly, Unit Wire		Appelez-nous	-
39	2309432		Gasket, Condenser		Appelez-nous	-
40	WP2259350		Power Supply, Ingredient Care Center   (Replaces: 2259350)			Immediately	$ 130.82
41	WPW10495645		Ground, Inverter   (Replaces: W10495645)				$ 11.42
42	WPW10483905		Jumper, Inverter   (Replaces: W10483905)				$ 107.51
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 99.46
NI	SF5516		Valve, Access   (Replaces: 978026)			Immediately	$ 14.69
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 16.79
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	876764		Valve, Access			Immediately	$ 86.33
NI	978030		Valve, Access				$ 123.53
NI	N/P		Refrigerant Charge 7.50 Oz. (r-134a)		Appelez-nous	-
