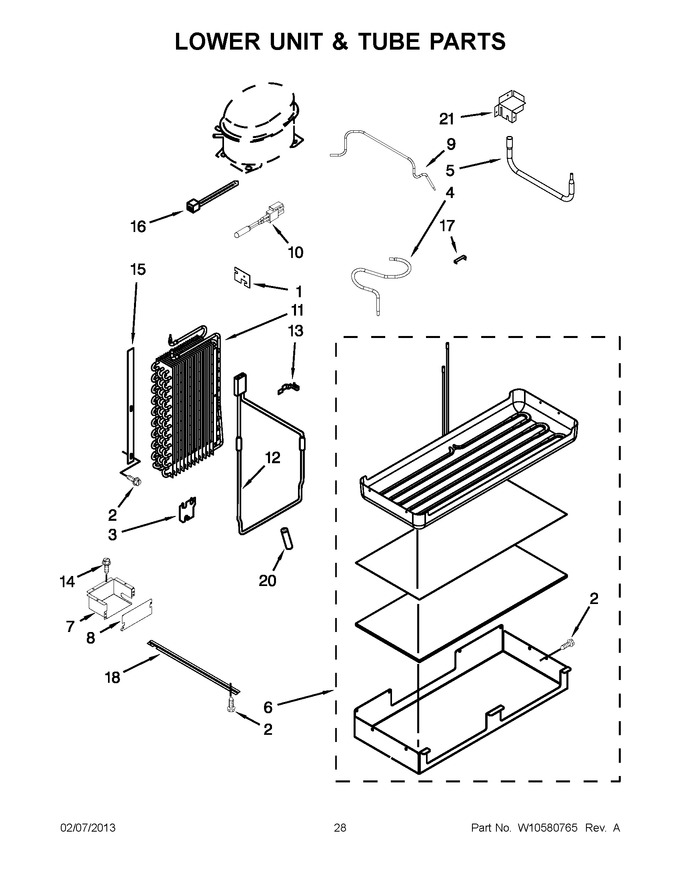

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10139908		Cover, Evap Seal				$ 13.06
2	W11624204		Screw   (Replaces: 486194)				$ 14.72
3	W10157752		Bracket, Heater		Appelez-nous	-
4	W10306442		Tube, Oil Trap Suction		Appelez-nous	-
5	W10388653		Tube, Connect Drier Restrictor			Immediately	$ 40.48
6	W11623101		Drain Pan Assembly   (Replaces: W10281063)			Immediately	$ 394.02
7	WPW10309012		Cover, Wiring   (Replaces: W10309012)				$ 81.52
8	W11756952		Cover, Wire Box   (Replaces: W10321048)		Appelez-nous	-
9	W10412485		Tube, Discharge				$ 135.81
10	WP2188820		Thermistor, Rc   (Replaces: 2188820)			Immediately	$ 30.85
11	WPW10427993		Evaporator   (Replaces: W10427993)			Immediately	$ 314.25
12	WPW10140162		Heater, Defrost   (Replaces: W10140162)			Immediately	$ 170.92
13	1113048		Clamp, Heater		Appelez-nous	-
14	W10321050		Shelf, Wiring Cover		Appelez-nous	-
15	W10432308		Gasket, Evaporator		Appelez-nous	-
16	4389107		Wire Tie		Appelez-nous	-
17	W10169509		Clip, Heat Exchanger		Appelez-nous	-
18	2320554		Support, Drain Pan		Appelez-nous	-
20	2215648		Dampener				$ 13.21
21	W10160981		Bracket, Air Return Assembly		Appelez-nous	-
