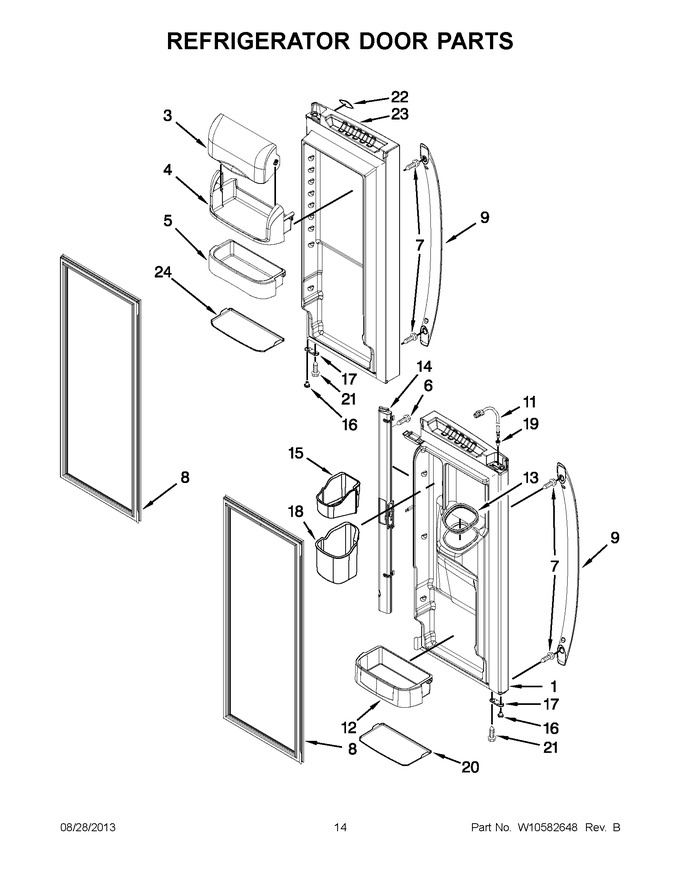

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107873S | Door, Left (stainless) |
|
- | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10119841 | Bucket, Medium (Replaces: W10119841) |
|
Immediately | $ 90.23 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | WPW10661886 | Screw (Replaces: W10303465) |
|
Immediately | $ 12.88 | ||||
| 8 | W10830055 | Gasket, Door (grey) (Replaces: W10443238) |
|
Immediately | $ 229.10 | ||||
| 9 | WPW10314517K | Handle, Door (stainless)_ (Replaces: W10314517K) |
|
$ 243.37 | |||||
| 11 | W10275942 | Tube, Water |
|
Immediately | $ 120.27 | ||||
| 12 | WPW10119846 | Bin, Shelf (gallon) (Replaces: W10119846) |
|
Immediately | $ 81.84 | ||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: 12665101SP) |
|
Immediately | $ 32.76 | ||||
| 14 | WP12722813AP | Mullion, Door (grey) (Replaces: 12732503AP) |
|
$ 340.89 | |||||
| 15 | W10187453 | Bucket, Door Upper (Replaces: 12977401) |
|
$ 73.08 | |||||
| 16 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 17 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 18 | 12977501 | Bucket, Door Lower |
|
- | |||||
| 19 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 20 | W11510594 | Gripper-gallon (Replaces: W10450019) |
|
$ 20.01 | |||||
| 21 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 22 | WPW10243391 | Nameplate (stainless) (Replaces: W10243391) |
|
$ 58.31 | |||||
| 23 | 13107867S | Door, Right (stainless) |
|
- | |||||
| 24 | W11510593 | Gripper-medium (Replaces: W10450018) |
|
Immediately | $ 17.43 |
