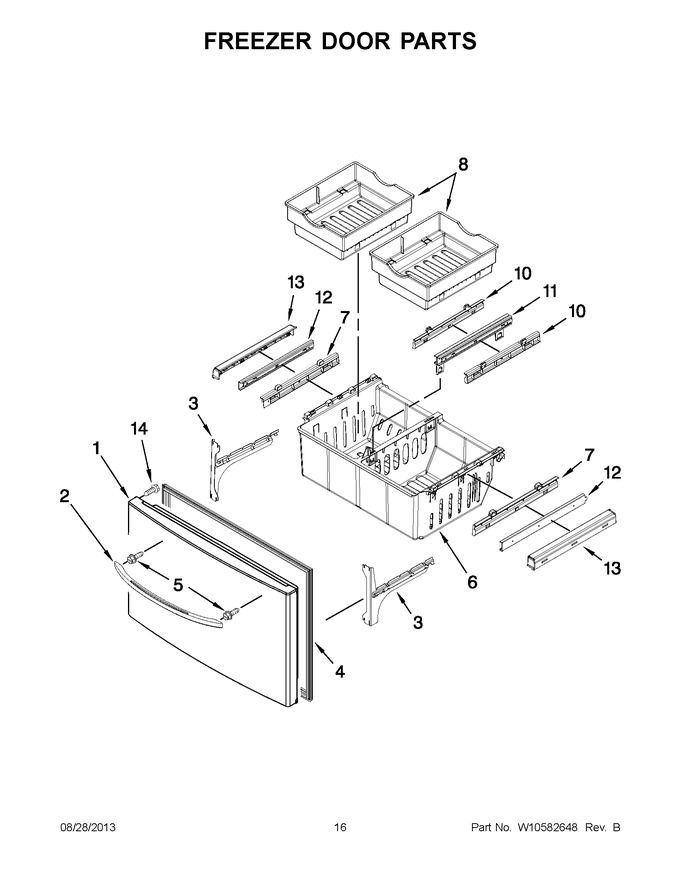

09 - Freezer Door Parts


10 - Dispenser Front Parts


11 - Unit Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977874S		Freezer Door (stainless)		Appelez-nous	-
2	WPW10314517K		Handle, Door (stainless)_   (Replaces: W10314517K)				$ 243.37
3	WPW10330995		Bracket, Door Slide (right Hand)   (Replaces: W10330995)			Immediately	$ 340.61
3	WPW10330994		Bracket, Door Slide (left Hand)   (Replaces: W10330994)			Immediately	$ 169.02
4	WPW10714545		Gasket, Door (grey)   (Replaces: W10443322)				$ 323.60
5	WPW10661886		Screw   (Replaces: W10303465)			Immediately	$ 12.88
6	13002801SP		Bin, Lower		Appelez-nous	-
7	W10187469		Adapter, Outer Bin   (Replaces: 13002603SP)				$ 92.28
8	W10184227		Bin, Upper   (Replaces: 13002402)			Immediately	$ 122.12
10	W10184223		Adapter, Center Bin   (Replaces: 13002604SP)				$ 97.14
11	W10235358		Bracket/glide Assembly				$ 318.09
12	WPW10235368		Glide, Upper   (Replaces: W10235368)				$ 335.82
13	W10826790		Retainer, Glide (left Hand)   (Replaces: 13002701SP)				$ 62.48
13	W10826791		Retainer, Glide (right Hand)   (Replaces: 13002702SP)				$ 62.48
14	WP98165		Screw   (Replaces: 12990521)				$ 8.57
