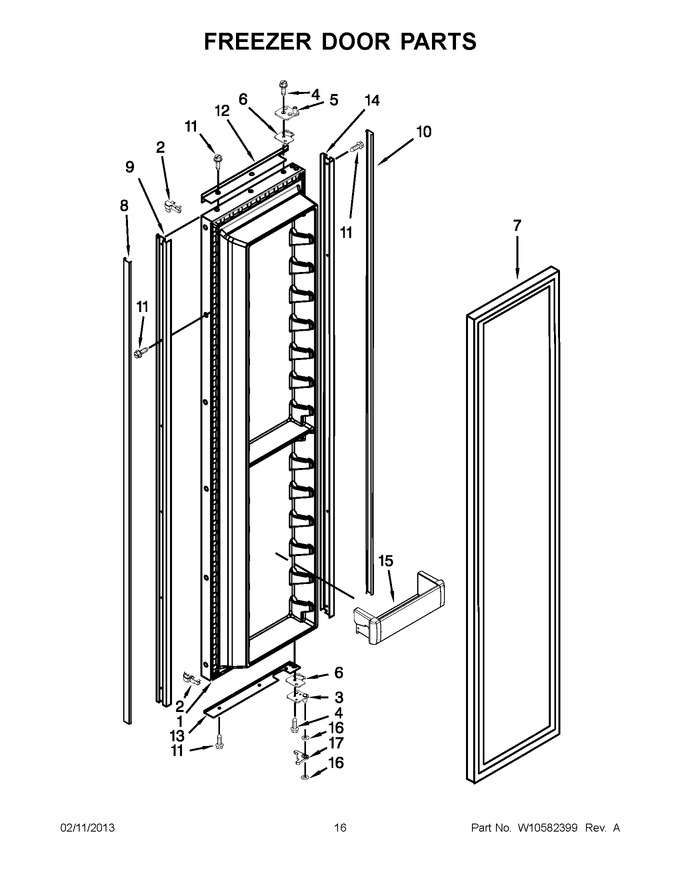

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193486		Freezer Door, Service		Appelez-nous	-
2	2207457		Trim, Corner				$ 57.12
3	2252294		Hinge, Bottom		Appelez-nous	-
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
5	W10484480		Hinge Assembly, Top				$ 64.04
6	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 108.07
7	WP2266905		Door Gasket, Magnetic   (Replaces: 2222814)				$ 329.66
8	2314003S		Cover, Trim (handle Side)				$ 174.63
9	2309497S		Trim, Door (handle Side)				$ 323.02
10	2259448S		Trim Assembly, Cover (hinge Side)				$ 179.50
11	WP8281250		Screw   (Replaces: 8281250)				$ 11.42
12	2309489S		Trim-door, Top		Appelez-nous	-
13	2309495S		Trim-door, Btm		Appelez-nous	-
14	2309498S		Trim, Door (hinge Side)				$ 324.38
15	W10323602		Bin, Door				$ 98.03
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
17	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 38.28
