Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2313978S Panel, Decorative Assembly Special Order $ 312.20

2 W10188580 Cover, Unit Special Order $ 274.17

3 WP489069 Screw   (Replaces: 1157158) In-Stock Immediately $ 8.40

4 2256466 Panel, Back Special Order $ 327.22

5 W10185625 Unit Cover, Front Special Order $ 262.53


    View Diagram in Separate Window     Print Icon   Print Part List

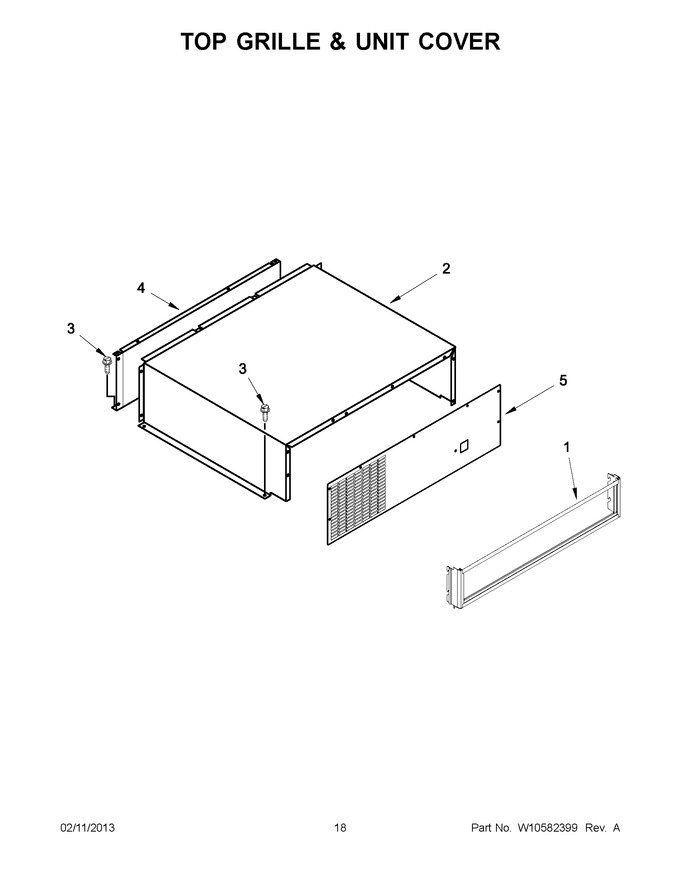

Diagram for KSSO42FTX17
