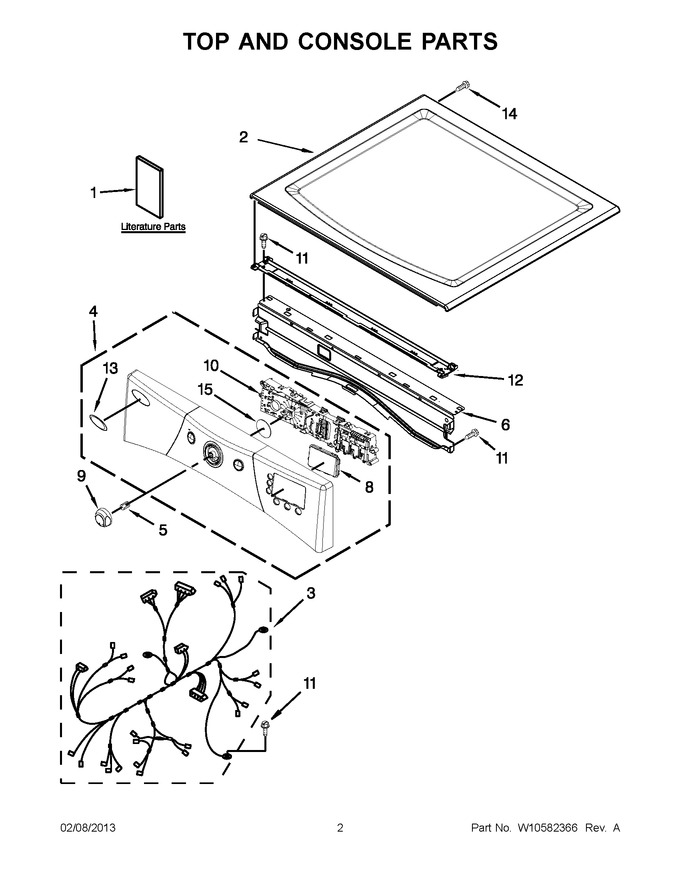

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10443109 | Tech Sheet |
|
- | |||||
| 1 | W10443041 | Installation, Instruction |
|
- | |||||
| 1 | W10385092 | Use & Care Guide |
|
- | |||||
| 2 | WPW10336080 | Top (white) (Replaces: W10336080) |
|
$ 331.99 | |||||
| 3 | W10555106 | Main Harness |
|
- | |||||
| 4 | W10385620 | Panel, Console |
|
- | |||||
| 5 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 6 | WP8565237 | Bracket, Console (Replaces: 8565237) |
|
$ 189.77 | |||||
| 8 | W10368266 | Window, Led Display |
|
- | |||||
| 9 | WPW10251394 | Chrome (Replaces: W10251394) |
|
$ 55.94 | |||||
| 10 | WPW10387234 | Assembly, User Interface (Replaces: W10387234) |
|
$ 313.89 | |||||
| 11 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | WPW10266747 | Channel, Water Dryer (Replaces: W10266747) |
|
$ 73.96 | |||||
| 13 | W10338425 | Medallion |
|
- | |||||
| 14 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 15 | 8572039 | Seal, User Interface |
|
- |
