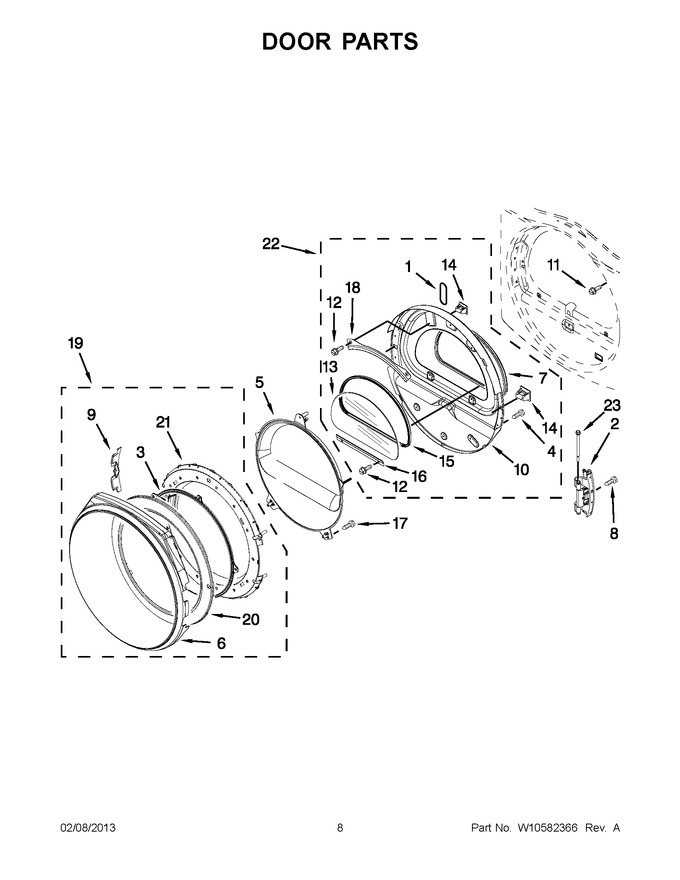

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10256915 | Label, Hinge Hole Cover (white) (Replaces: W10256915) |
|
$ 73.86 | |||||
| 2 | WPW10304672 | Assembly, Door Hinge (Replaces: W10304672) |
|
Immediately | $ 209.23 | ||||
| 3 | N/P | Screen, Door (not Serviceable Sperately, Order Item. 19 ) |
|
- | |||||
| 4 | W11116979 | Screw (Replaces: 8534044) |
|
$ 12.38 | |||||
| 5 | W10215764 | Door, Intermediate Stationary |
|
$ 97.85 | |||||
| 6 | W10215757 | Door, Trim Outer Ring (white) |
|
$ 95.49 | |||||
| 7 | WPW10163915 | Seal, Door (Replaces: W10163915) |
|
Immediately | $ 119.44 | ||||
| 8 | WPW10159996 | Screw (Replaces: W10159996) |
|
$ 7.67 | |||||
| 9 | W10215766 | Door Trim, Hinge Cover (white) |
|
$ 26.09 | |||||
| 10 | W11690171 | Inner Door Assembly (Replaces: W10198441) |
|
$ 184.04 | |||||
| 11 | WP355515 | Screw (Replaces: 355515) |
|
$ 7.63 | |||||
| 12 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 7.67 | |||||
| 13 | WPW10286878 | Window (Replaces: W10286878) |
|
$ 247.28 | |||||
| 14 | 279570 | Assembly, Door Catch (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 15 | W11706993 | Seal, Window (Replaces: 8579663) |
|
$ 25.40 | |||||
| 16 | W10822054 | Retainer, Lower Window (Replaces: 8519354) |
|
Immediately | $ 16.21 | ||||
| 17 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 6.80 | ||||
| 18 | 8519356 | Retainer, Window (upper) |
|
- | |||||
| 19 | W10371561 | Door Assembly Outer |
|
$ 227.16 | |||||
| 20 | N/P | Trim-door Inner Ring (not Serviceable Seperately, Order Item. 19 ) |
|
- | |||||
| 21 | W10431338 | Door |
|
- | |||||
| 22 | W10564641 | Inner Door Assembly |
|
$ 203.97 | |||||
| 23 | 8565087 | Screw |
|
- |
