SELECT A DIAGRAM

01 - Cabinet Parts

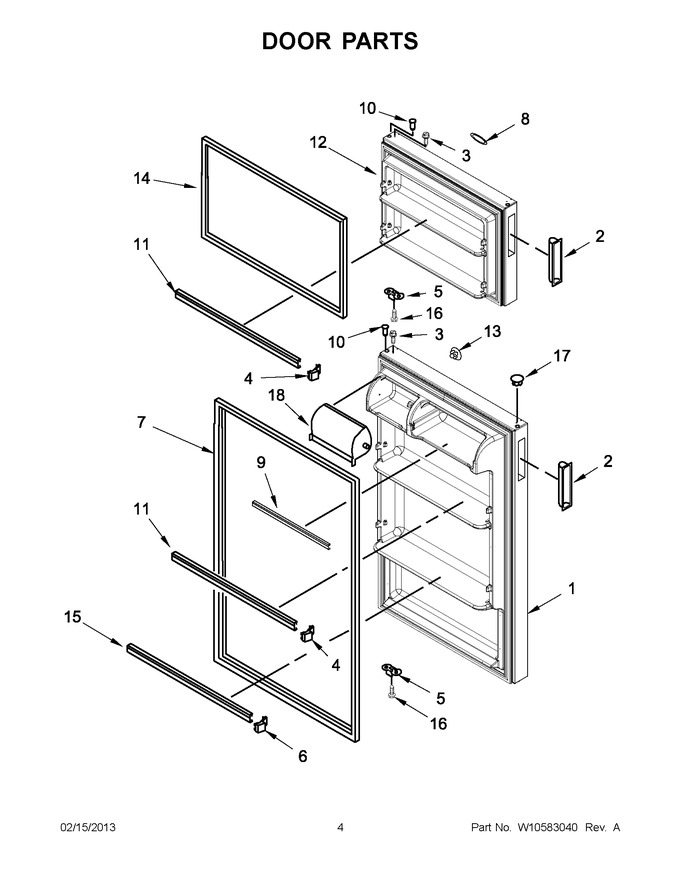

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2316378W		Refrigerator Door Includes (7 & 10) (white)		Appelez-nous	-
1	2316197B		Refrigerator Door Includes (7 & 10) (black)		Appelez-nous	-
2	WP984493		Handle (white)   (Replaces: 984493)				$ 114.49
2	984493B		Handle (black)		Appelez-nous	-
3	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
4	WP2156003		End Cap, Door Trim   (Replaces: 2156003)			Immediately	$ 13.25
5	2217944		Bracket, Door Stop				$ 26.55
6	WP2195916K		End Cap, Door Trim   (Replaces: 2195916)			Immediately	$ 13.18
7	WP2319265T		Door Gasket, Magnetic (beige)   (Replaces: W10190033)			Immediately	$ 184.89
7	2319265B		Door Gasket, Magnetic (black)   (Replaces: 2264724)				$ 329.50
8	2325418		Nameplate (silver)				$ 44.68
9	W11129820		Trim, Door   (Replaces: W10234242)			Immediately	$ 127.34
10	WP2183003		Thimble   (Replaces: 2262054)				$ 8.14
11	WP2266727		Trim, Door   (Replaces: 2266727)			Immediately	$ 92.50
12	2316196W		Freezer Door Includes (10 & 14) (white)				$ 545.55
12	2316196B		Freezer Door Includes (10 & 14) (black)		Appelez-nous	-
13	WP2189009		Hole Plug, Handle (black)   (Replaces: 2189009)				$ 7.61
13	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 7.77
14	WP2319263B		Door Gasket, Magnetic (black)   (Replaces: 2264722)			Immediately	$ 268.28
14	WP2319263T		Door Gasket, Magnetic (beige)   (Replaces: W10190031)			Immediately	$ 169.53
15	WP2266738		Trim, Door   (Replaces: 2266738)				$ 111.69
16	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
17	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 8.19
17	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 24.21
18	WP2207942		Door, Compartment   (Replaces: 2207942)			Immediately	$ 58.76

    View Diagram in Separate Window       Print Part List
