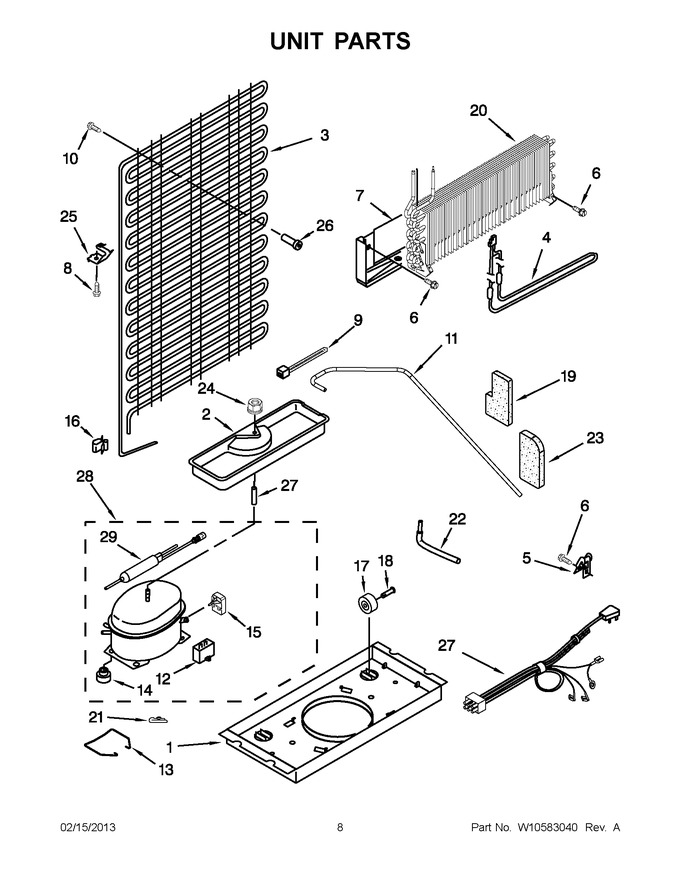

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10222451 | Support Plate, Compressor |
|
$ 32.07 | |||||
| 2 | 2176668 | Tray, Evaporator |
|
$ 77.40 | |||||
| 3 | WPW10219348 | Condenser (Replaces: W10219348) |
|
$ 310.04 | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2263749) |
|
Immediately | $ 93.70 | ||||
| 5 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 6 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 7 | 2319224 | Heat Shield |
|
$ 116.21 | |||||
| 8 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 9 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 10 | 8533892 | Screw |
|
- | |||||
| 11 | W10212090 | Tube, Discharge |
|
- | |||||
| 12 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 13 | W10249638 | Bale Strap |
|
- | |||||
| 14 | WP2163786 | Grommet (Replaces: 2222084) |
|
$ 8.36 | |||||
| 15 | W10892065 | Start-device, Combination (start Relay And Overload For Production Compressor Only) (Replaces: W10330832) |
|
$ 185.18 | |||||
| 16 | W10812038 | Clip, Wire (compressor) (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 18 | WP2264756 | Axle, Roller (Replaces: 2264756) |
|
$ 7.55 | |||||
| 19 | 2262191 | Wedge, Evaporator |
|
- | |||||
| 20 | WP2263919 | Evaporator Assembly (Replaces: 2263919) |
|
$ 324.61 | |||||
| 21 | 24364001 | Pin, Cotter |
|
- | |||||
| 22 | 2320728 | Tube, Process |
|
- | |||||
| 23 | 2262192 | Wedge, Evaporator |
|
- | |||||
| 24 | 285002 | Nut, Hex (Replaces: 489153) |
|
$ 12.85 | |||||
| 25 | 4386951 | Clip, Condenser (Replaces: 2172892) |
|
- | |||||
| 26 | 2258452 | Spacer, Condenser |
|
- | |||||
| 27 | W10151655 | Wire Assembly Unit |
|
- | |||||
| 28 | W10233960 | Compressor (Replaces: W10237272) |
|
Immediately | $ 539.34 | ||||
| 29 | W10843121 | Drier (Replaces: W10190413) |
|
Immediately | $ 57.13 | ||||
| NI | 978028 | Valve, Access (œ``) |
|
- | |||||
| NI | 978029 | Valve, Access (œ``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (Ÿ``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge (r134a) |
|
- | |||||
| NI | WP978025 | Valve, Access (Œ``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 |
