SELECT A DIAGRAM

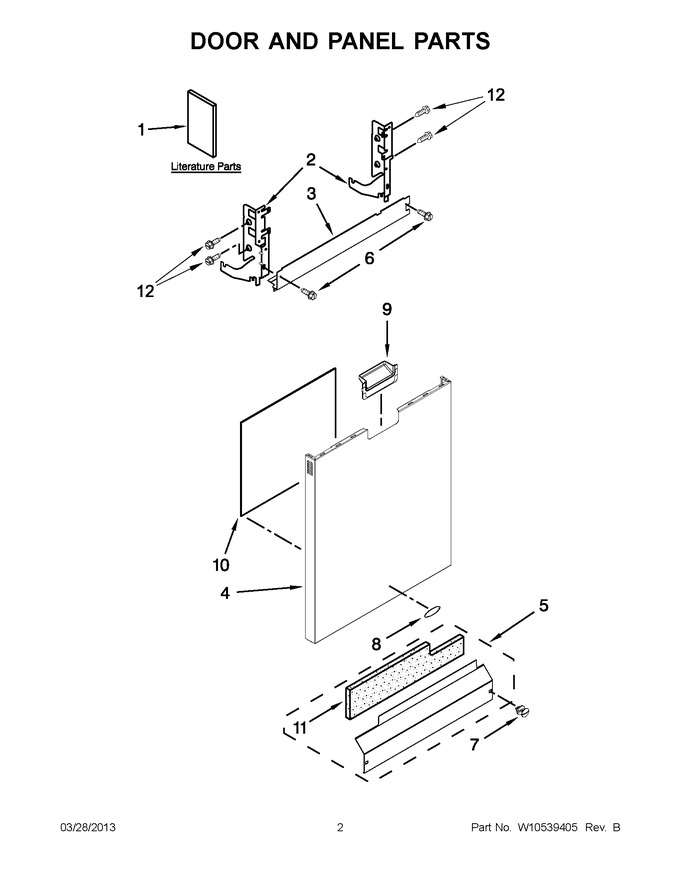

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10505257		Tech Sheet		Appelez-nous	-
1	W10401504		Instructions, Installation		Appelez-nous	-
1	W10451535		Energy Guide		Appelez-nous	-
1	W10350359		Use & Care Guide, English/french		Appelez-nous	-
1	W10350360		Use & Care Guide, Spanish		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 128.15
2	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 128.02
3	W10850371		Barrier, Vapor Assembly   (Replaces: W10321449)			Immediately	$ 29.59
4	W10323563		Panel Front (includes Items 8 & 9) (stainless)				$ 166.57
5	W10827631		Access Panel (black)   (Replaces: W10369024)			Immediately	$ 176.08
6	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
7	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 27.35
8	WPW10393264		Nameplate (grey)   (Replaces: W10393264)				$ 60.97
9	W10369758		Pocket, Handle (silver)		Appelez-nous	-
10	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 86.61
11	W10831329		Insulation, Toe Panel   (Replaces: W10073540)			Immediately	$ 38.97
12	WP3400071		Screw   (Replaces: 3400071)			Immediately	$ 7.43

    View Diagram in Separate Window       Print Part List
